Item No :
S series, U seriesOrder(MOQ) :
1 setPayment :
T/T, PayPal, Western UnionProduct Origin :
ChinaColor :
Full ColorShipping Port :
ShenzhenLead Time :

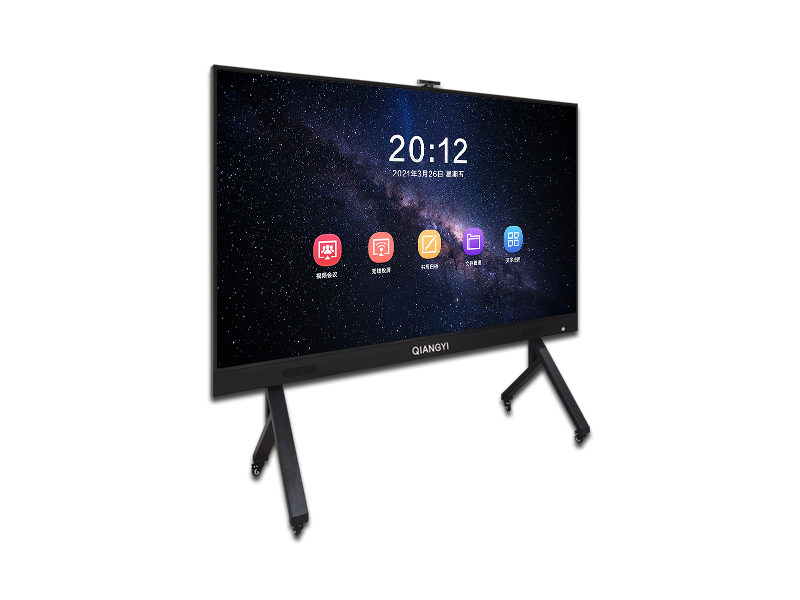

15-30 daysBig Size Multifunctional LED TV
GTV Series
Multiple Applications
Conference, Education, Medical, Entertainment, Show
Multifunction
Video Conference, Wireless Projection, Writing Board, Blue Tooth, Dual Wi-Fi, File Management

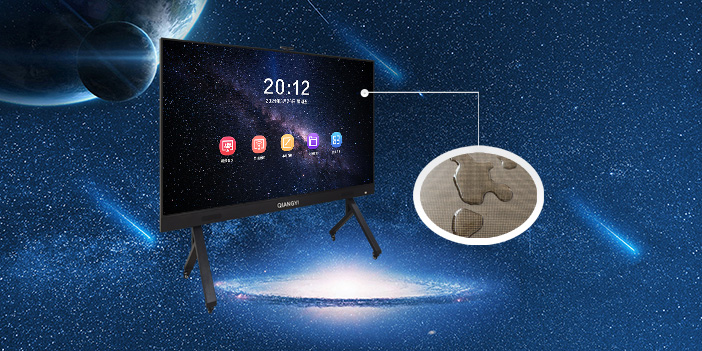

LED Display With GOB Technology
Ultra-protective LED display, patent technology
GOB Ultra-protective Performance

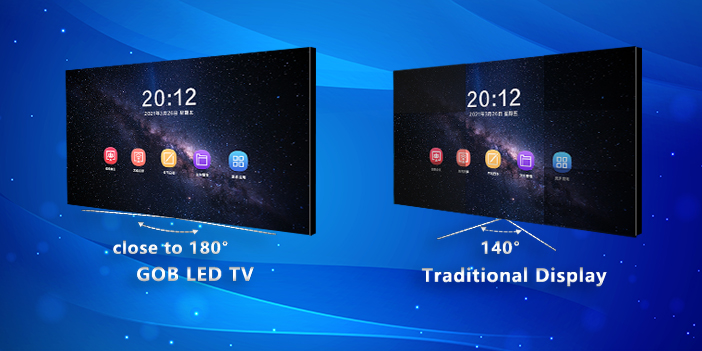

Ultra wide viewing angle, closed to 180 degrees
Multiple Installation Method
Modular Splicing: easy transportation, can be put in elevator
Light Weight& ultra-thin: aluminum alloy made cabinet& frame
Easy Installation: standardized design, easy installation
Great Flatness: adopt patent GOB technology
Stable& Safe: proven material& technology
Excellent Performance
Specification Sheet
| S Series | ||||
| Item | S108 | S135 | S163 | U216 |
| Size | 108 in | 135 in | 163 in | 216 in |
| Pixel Pitch | P1.25 | P1.56 | P1.875 | P2.5 |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 |
| Screen Size | 2400×1350mm | 3000×1687.5mm | 3600×2025mm | 4800×2700mm |
| Frame Size | 2437×1507mm | 3037×1844.5mm | 3637×2182mm | 4837×2857mm |

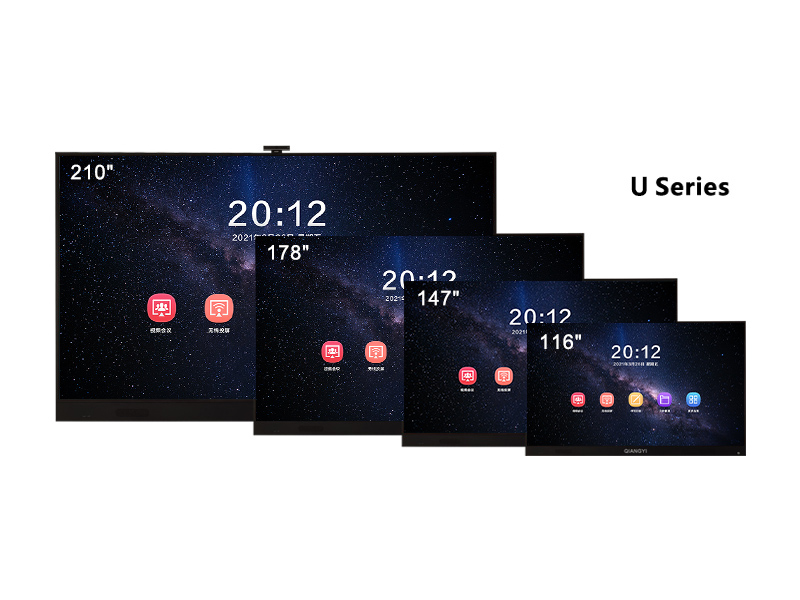

| U Series | ||||
| Item | U116 | U147 | U178 | U210 |
| Size | 116 in | 147 in | 178 in | 210 in |
| Pixel Pitch | P1.86 | P1.86 | P1.86 | P1.86 |
| Resolution | 1376×774 | 1720×1032 | 2064×1290 | 2408×1548 |
| Screen Size | 2560×1440mm | 3200×1920mm | 3840×2400mm | 4480×2880mm |
| Frame Size | 2597×1597mm | 3237×2077mm | 3877×2557mm | 4517×3037mm |
| Screen Parameter | ||||
| Panel | Ultra-Protective QCOB HD Mirror Surface LED Panel | |||
| Brightness | 0-1000 cd/m2 | |||
| MAX Contrast Ratio | 6000:1 | |||
| Viewing Angle | H: close to 180° V: close to 180° | |||
| Gray Scale | 16 bit | |||
| IP Grade | IP65 (front) | |||
| Maintenance | Front Maintenance | |||
| System Parameter | ||||
| System | Android | Windows (optional) | ||
| CPU | Main Frequency 1.7G 64bit 4 Core | I7-2 Generation | ||
| RAM | DDR4-4GB | 4G | ||
| ROM | 16GB | 128GB | ||
| Touch Screen Parameter | ||||
| Touch Screen | Ultra-Protective QCOB HD Mirror Surface LED Panel, Shore Hardness 80D | |||
| Touch Technology | Infrared, 10 points | |||
| Touch Resolution | 32767×32767 | |||
| Indentify Size | 5mm | |||
| Touch Accuracy | 1mm | |||
| Response Time | 9.5ms | |||
| Multiple Interface | ||||
| HDMI | 3× HDMI HD input | |||
| USB | 1× USB3.0 3×USB2.0 | |||
| SPDIF | Optical digital audio output | |||
| AUDIO | 3.5mm audio input | |||
| LAN Port | 100M Ethernet port, Dual Wi-Fi | |||
| Other Parameters | ||||
| Cabinet/Frame Material | Aluminum | |||
| Input Power | AC 100-240V 50-60Hz | |||
| Working Environment | Temperature: 10°-40° Humidity: 10%-90% RH | |||
| Stock Enviroment | Temperature: 0°-60° Humidity: 10%-90% RH | |||
| LED Lifespan | 100000H | |||
