Cabinet Size (L×W)：500mm×500mm
Brightness: 2500cd/m² -4500cd/m²
Cabinet Weight: 7.5 kg
IP Grade: IP65
Item No :
P2.60, P2.97, P3.91, P4.81Order(MOQ) :
1 setPayment :
T/T, PayPal, Western UnionProduct Origin :
ChinaColor :
Full ColorShipping Port :
ShenzhenLead Time :
7-30 daysWeight :
7.5 kgCable connection outdoor rental led display
RC Outdoor Series

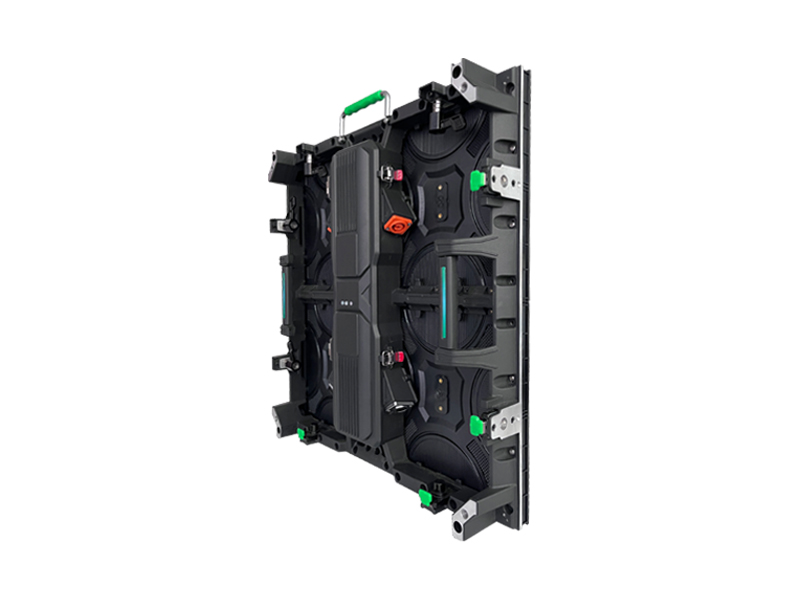

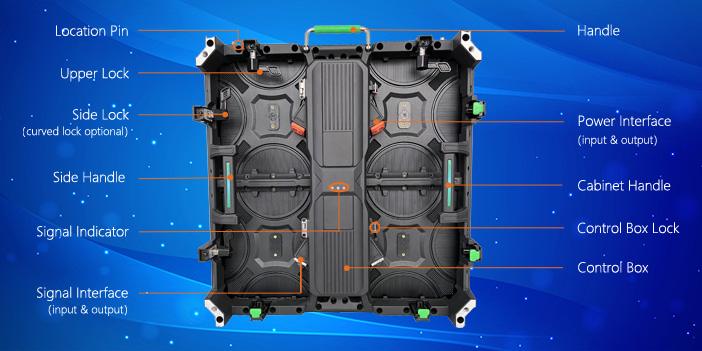

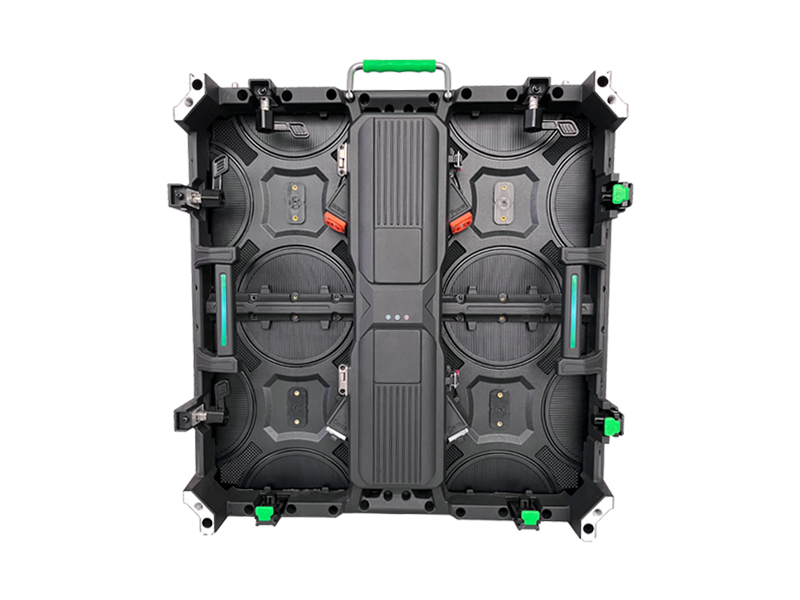

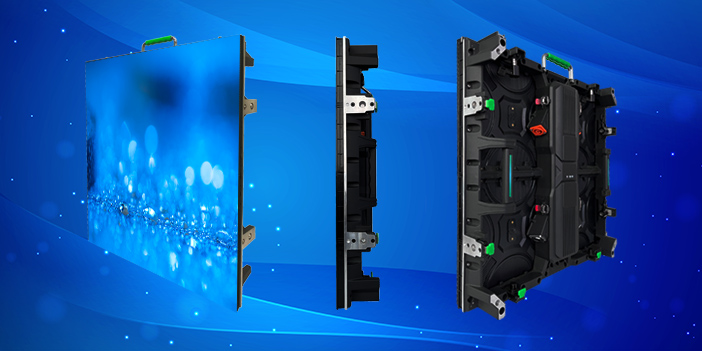

Cabinet Structure
Curved side locks optional, curved degree ±12.5 degrees.

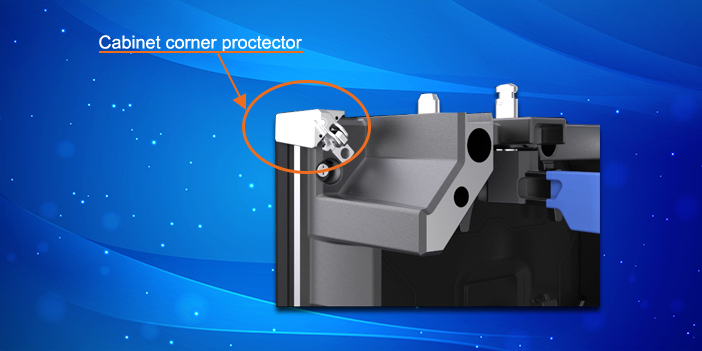

Each Conner has one protector for every cabinet

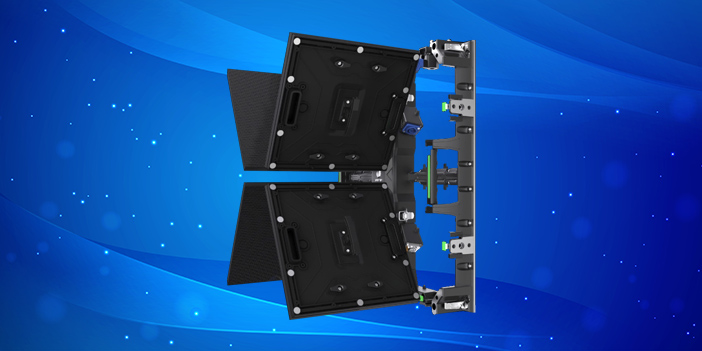

Front maintenance cabinet solution optional

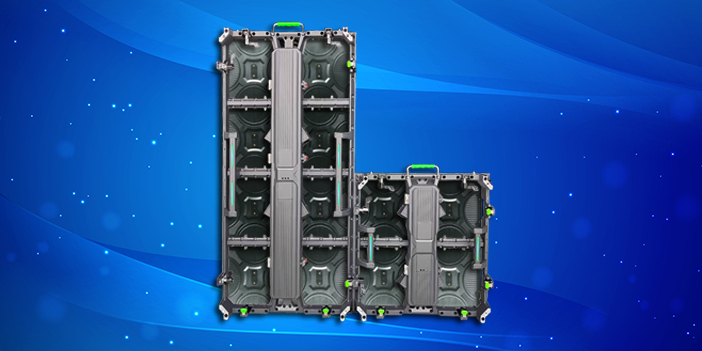

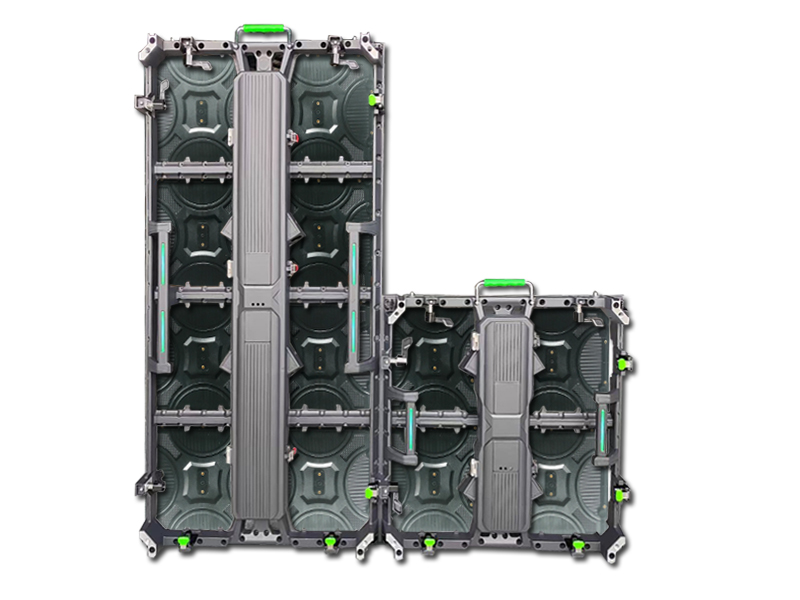

500*500mm and 500*1000mm Cabinets can be installed together

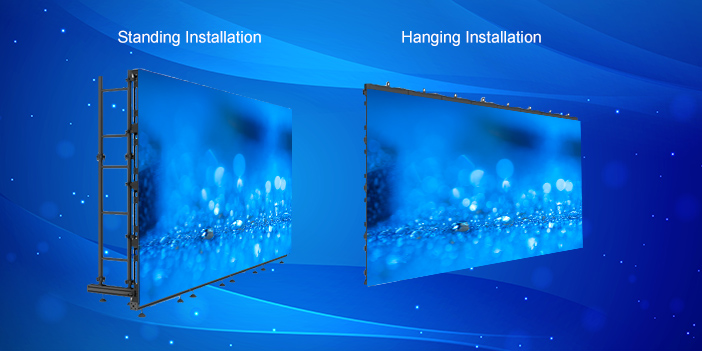

Multiple Installation Method

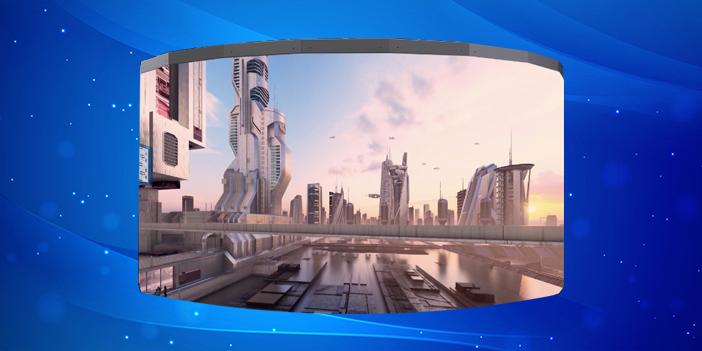

Curved Installation, 360 degrees curved installation available

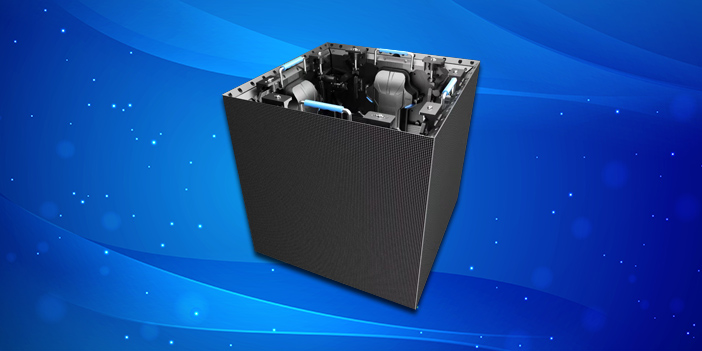

LED pillar screen, 90 degrees curved cabinet optional
Package

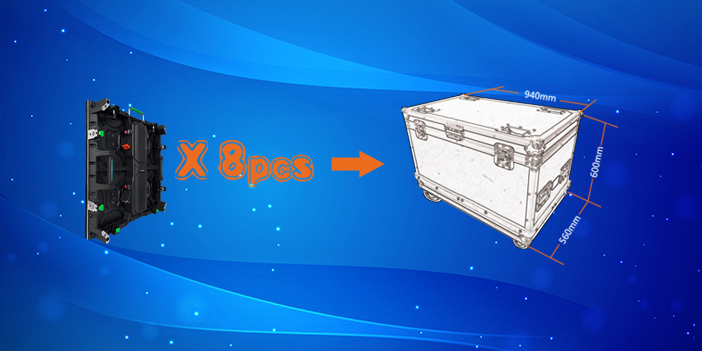

Different size flight cases can be customized, each case can pack 4 to 8 pcs panels.
Specification Sheet
| Item | P2.60 | P2.97 | P3.91 | P4.81 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| LED Encapsulation | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Density (pixels/m²) | 147456 | 112896 | 65536 | 43264 |
| Brightness (cd/m²) | 2500-4500 | 2500-4500 | 2500-4500 | 2500-4500 |
| Color Temperature | 6500-9500k | |||
| Scan Mode | 1/32 | 1/21 | 1/16 | 1/13 |
| Module Size (mm) | 250mm×250mm | |||
| Module Resolution (pixels) | 96×96 | 84×84 | 64×64 | 52×52 |
| Cabinet size (mm) | 500mm×500mm | |||
| Cabinet Resolution (pixels) | 192×192 | 168×168 | 128×128 | 104×104 |
| Module Quantity | 2×2 | |||
| Cabinet Weight | 7.5Kg | |||
| Cabinet Material | Die casting Aluminum | |||
| Working Voltage | AC：110V~240V，50~60Hz | |||
| MAX Power Consumption | ≤800W/ m² | |||
| AVG Power Consumption | 300W/ m²～400W/ m² | |||
| Viewing Angle | H: 160° V: 120° | |||
| Refresh Rate | 1920Hz/3840Hz | |||
| Gray Scale | 14-16bit | |||
| Contrast Ratio | 4000:1 | |||
| Control Method | synchronous Control System | |||
| IP Grade | IP65 | |||
| Working Temperature | 0℃～+60℃ | |||
| Working Humidity | 10％～90％ (RH) | |||
| Curved Degree | -12.5°~+12.5° | |||
| LED Life Span | 100000H | |||
| Certificate | FCC, CE, RoHs, CCC | |||
