Cabinet Size (L×W)：500mm×500mm
Brightness: 800cd/m² -1100cd/m²
IP Grade: IP40
Item No :
P1.56, P1.95, P2.60, P2.97, P3.91Order(MOQ) :
1 setPayment :
T/T, PayPal, Western UnionProduct Origin :
ChinaColor :
Full ColorShipping Port :

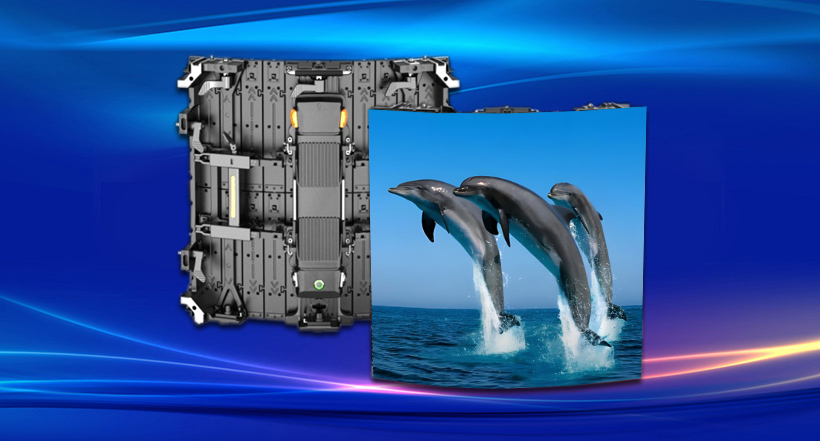

ShenzhenFlexible Rental LED Display
RF Series

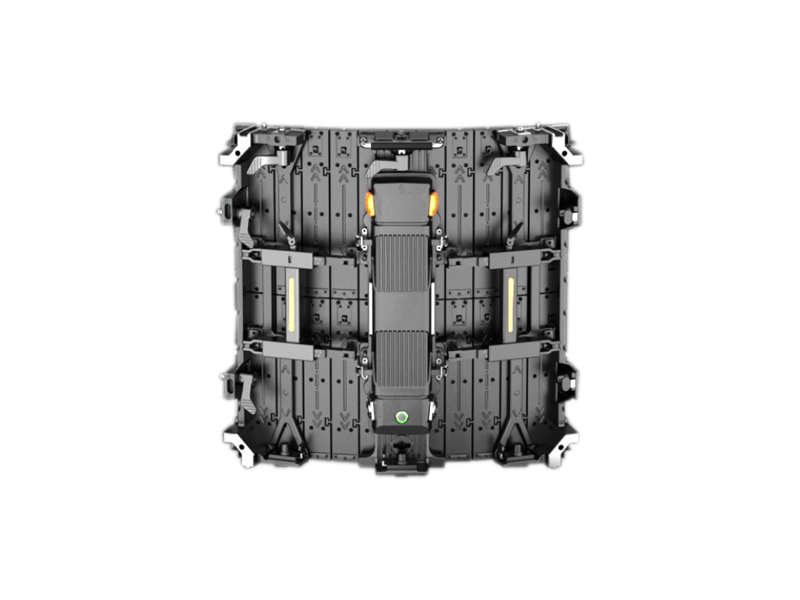

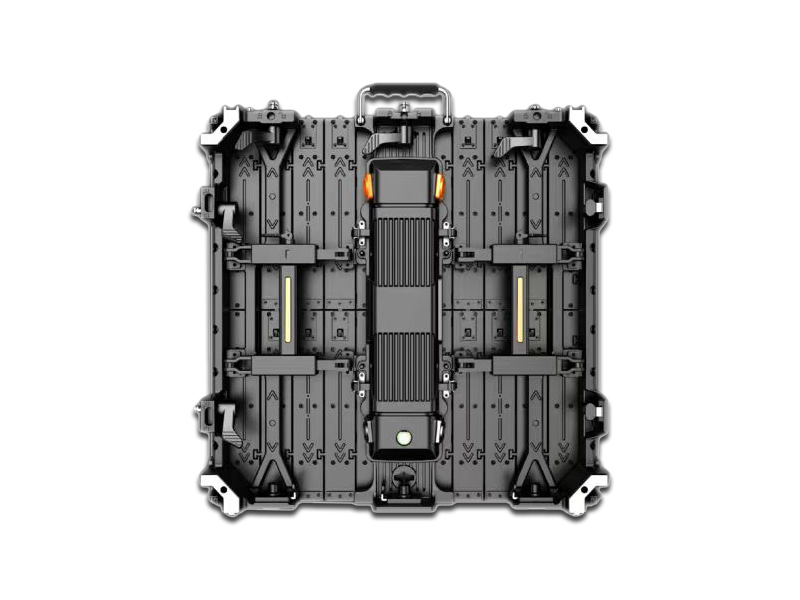

Cabinet Structure

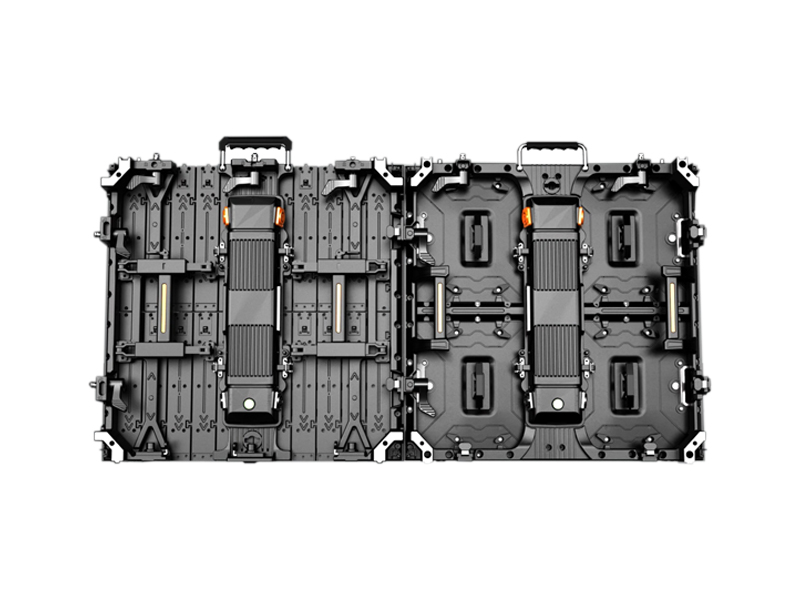

Flexible cabinet and straight cabinet can be assembled together

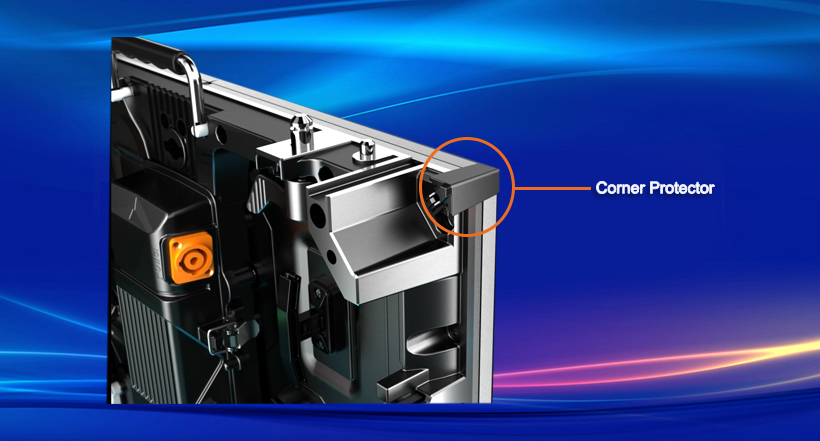

Corner protector can protect led lamps on corners and sides well

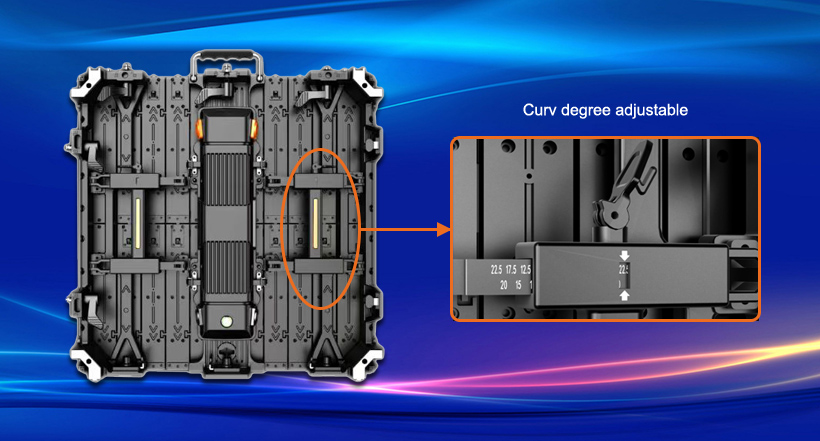

Curve degree can be adjusted in both right and light side, from -22.5° to +22.5°
Installation Method

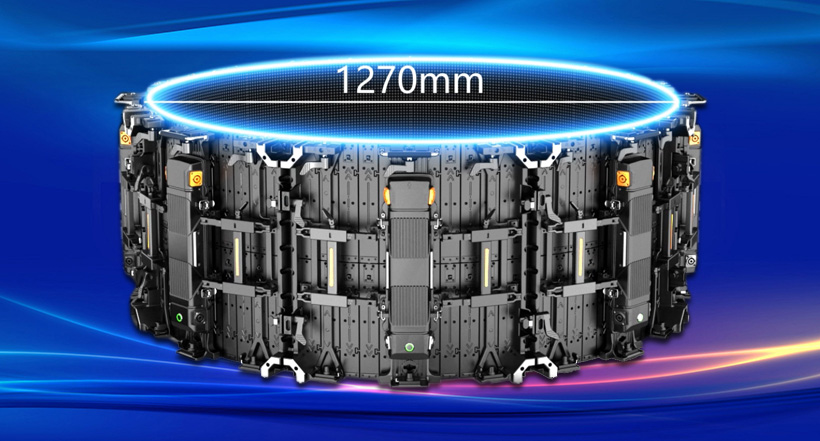

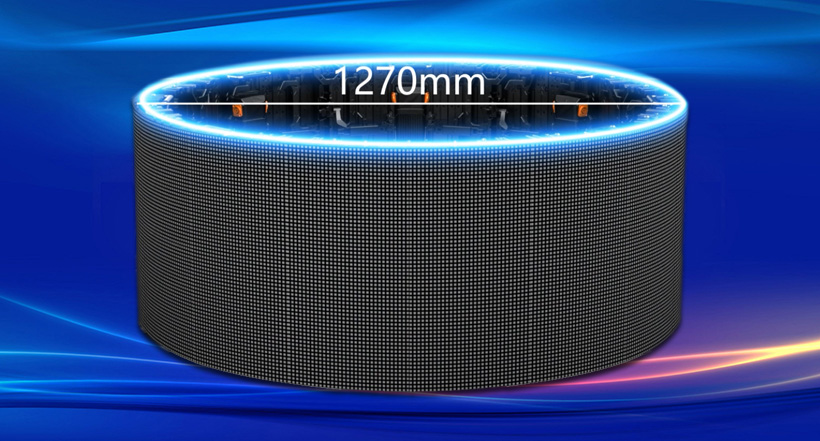

Internal curved installation, 360 degrees curved available, minimum diameter 1270mm

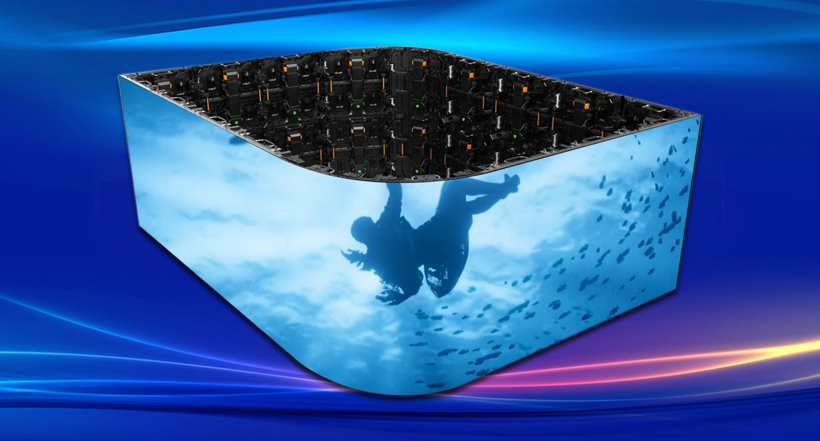

External curved installation, 360 degrees curved available, minimum diameter 1270mm

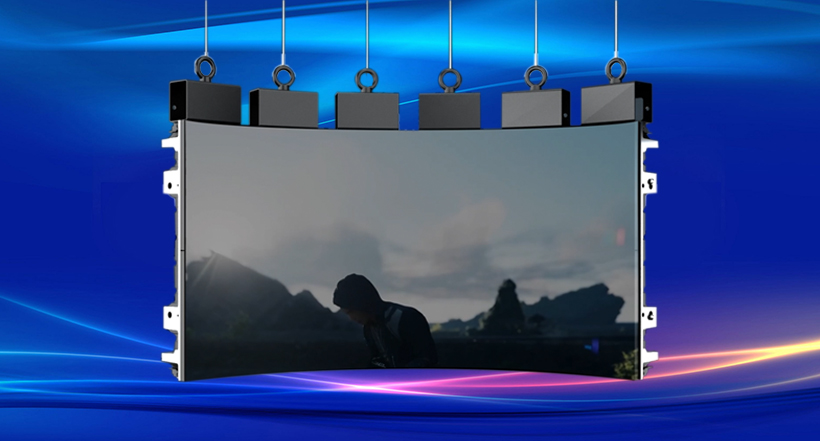

Hanging Installation
Standing installation
Specification Sheet
| Item | P1.56 | P1.95 | P2.60 | P2.97 | P3.91 |
| Pixel Pitch | 1.5625mm | 1.953mm | 2.604mm | 2.976mm | 3.91mm |
| LED Encapsulation | SMD1212 | SMD1515 | SMD1921 | SMD1921 | SMD1921 |
| Density (pixels/m²) | 409600 | 262144 | 147456 | 112896 | 65536 |
| Brightness (cd/m²) | 200-600 | 800-1100 | 800-1100 | 800-1100 | 800-1100 |
| Color Temperature | 6500-9500k | ||||
| Scan Mode | 1/32 | 1/32 | 1/32 | 1/21 | 1/16 |
| Module Size (L×W×D) | 250mm×250mm×15mm | ||||
| Module Resolution (L×W) | 160 × 160 | 128 × 128 | 96×96 | 84×84 | 64×64 |
| Cabinet Size (L×W×D) | 500mm×500mm×83mm | ||||
| Cabinet Resolution (L×W) | 320 × 320 | 256 × 256 | 192×192 | 168×168 | 128×128 |
| Module Quantity | 2×2 | ||||
| Cabinet Weight | 7Kg | ||||
| Cabinet Material | Die casting Aluminum | ||||
| Working Voltage | AC：110V~240V，50~60Hz | ||||
| MAX Power Consumption | ≤600W/ m² | ||||
| AVG Power Consumption | 200W/ m²～300W/ m² | ||||
| Viewing Angle | H：160° V：120° | ||||
| Refresh Rate | 1920Hz/3840Hz | ||||
| Gray Scale | 14-16bit | ||||
| Highest Contrast Ratio | 6000:1 | ||||
| Control Method | synchronous Control System | ||||
| Working Temperature | 0℃～+60℃ | ||||
| Working Humidity (RH) | 10％～60％ | ||||
| Curved Degree | -15°~+15° | ||||
| LED Life Span | 100000H | ||||
| Certificate | FCC, CE, RoHs, CCC | ||||
