Pixel Pitch：P0.93, P1.25, P1.56, P1.87
Cabinet Size (L×W)：600mm×337.5mm
IP Grade：IP30
Item No :
P0.93, P1.25, P1.56, P1.87Order(MOQ) :
1 setPayment :
T/T, PayPal, Western UnionProduct Origin :
ChinaColor :
Full colorShipping Port :
ShenzhenLead Time :

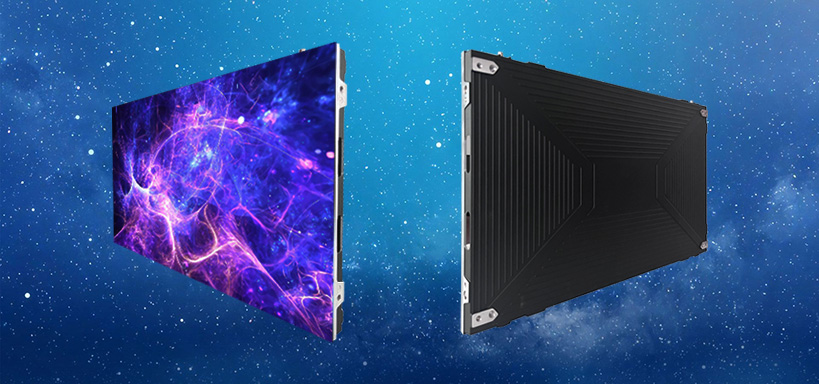

7-30 daysMini/ Small Pixel Pitch LED Display
FI 16:9 Series

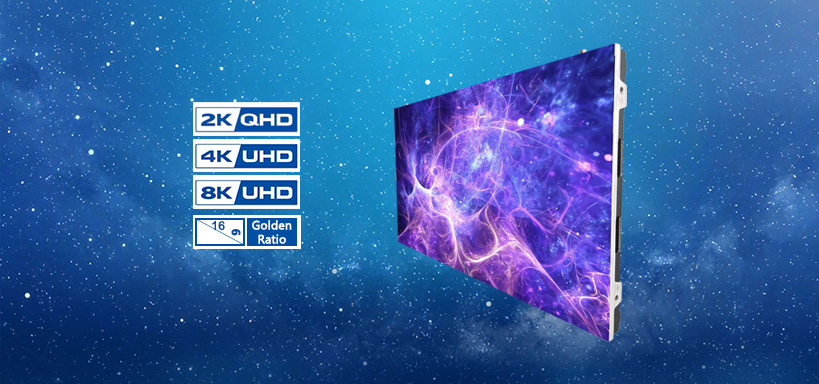

16:9 ratio cabinet size, UHD screen
600*337.5mm cabinet size,16:9 golden ratio, achieve 2K/4K/8K UHD easily.
Easy And Fast Installation

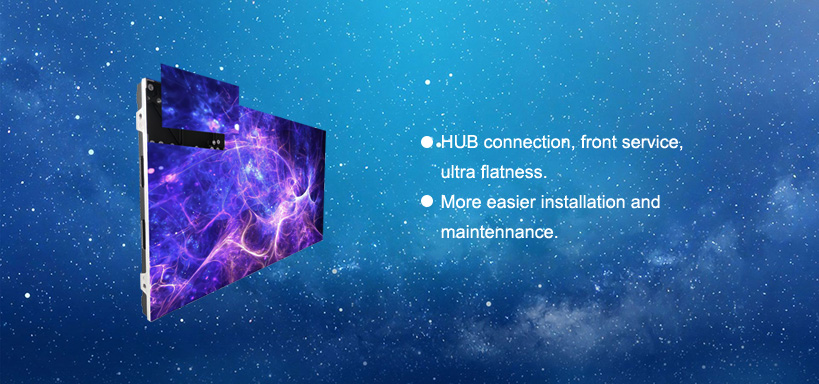

HUB connection, fast and easy module installation.

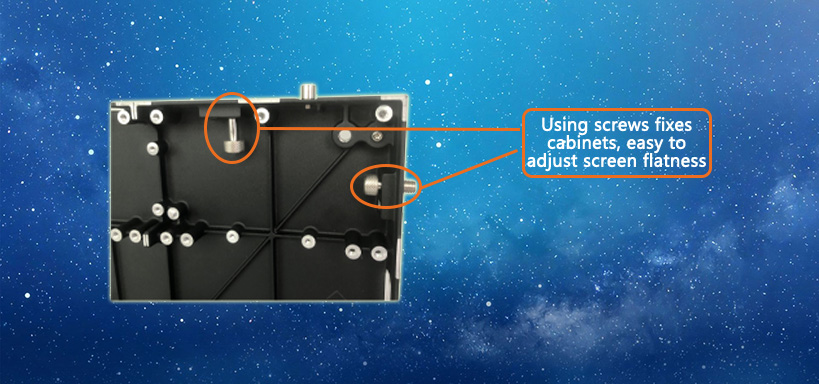

Cabinets fixed by screws, can adjust screen flatness much easier.

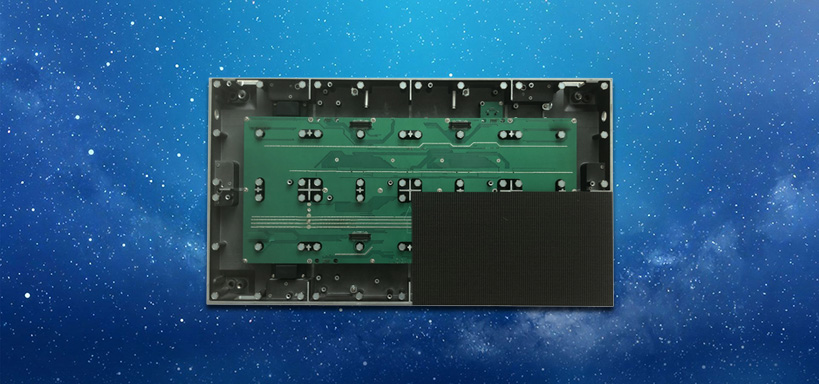

Module Front Maintenance

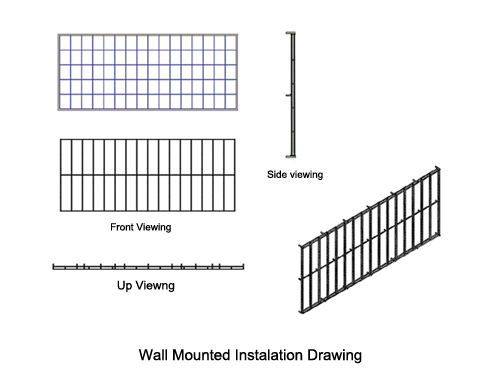

Installation Method
Applications: theater, stadium, showroom stage, monitoring room, house etc.,
Specification Sheet
| Item | P0.93 | P1.25 | P1.56 | P1.87 |
| Pixel Pitch | 0.93mm | 1.25mm | 1.5625mm | 1.875mm |
| LED Encapsulation | IMD-M09(4 in 1) | SMD1010 | SMD1010 | SMD1515 |
| Density (pixels/m²) | 1137777 | 640000 | 409600 | 284444 |
| Brightness (cd/m²) | 200-400 | 200-500 | 200-500 | 200-650 |
| Color Temperature | 6500-9500k | |||
| Driving Method | Constant Current | |||
| Module Size (mm) | 300mm×168.75mm×10mm | |||
| Module Resolution (Pixels) | 320×180 | 240×135 | 192×108 | 160×90 |
| Cabinet Size (mm) | 600mm×337.5mm×38mm | |||
| Cabinet Resolution (pixels) | 640×360 | 480×270 | 384×216 | 320×180 |
| Module Quantity | 2×2 | |||
| Cabinet Material | Die casting Aluminum | |||
| Working Voltage | AC：110V~240V, 50~60Hz | |||
| MAX Power Consumption | ≦ 800W/ m² | |||
| AVG Power Consumption | 100W/ m²～300W/ m² | |||
| Viewing Angle | H: close to 180° V: close to 180° | |||
| Refresh Rate | 3840Hz | |||
| Gray Scale | ≧ 16bit | |||
| Highest Contrast Ratio | 6000 : 1 | |||
| Control Method | Synchronous Control System | |||
| IP Grade | IP34 | |||
| Working Temperature | 0℃～+60℃ | |||
| Working Humidity (RH) | 10％～60％ | |||
| Installation Method | Fixed installation, Hanging Installation, Curved Installation, Front Maintenance | |||
| LED Life Span | 100000H | |||
| Certificate | FCC, CE, RoHs, CCC | |||
