Pixel Pitch：P1.578mm, P1.667mm, P1.875mm, P2.5mm
Cabinet Size (L×W)：480mm×480mm
IP Grade: Front: IP65 Rear: IP43
Item No :
P1.578mm、P1.667mm、P1.875mm、P2.5mmOrder(MOQ) :
1 setPayment :
T/T, PayPal, Western UnionProduct Origin :
ChinaColor :
Full ColorShipping Port :
ShenzhenLead Time :

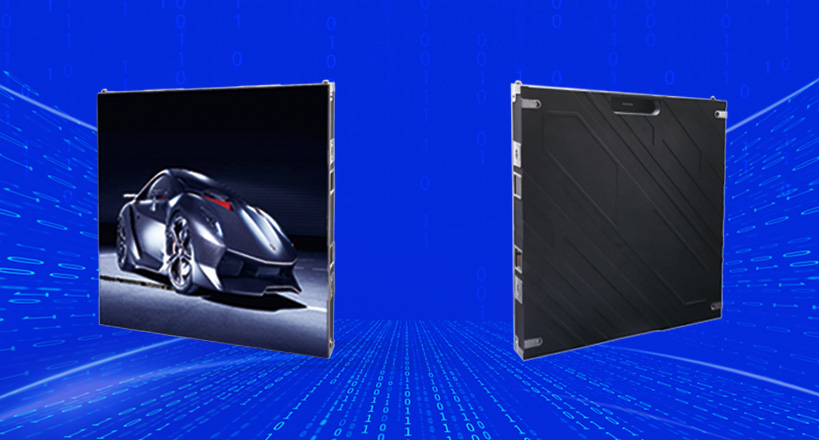

10-30 daysGOB Small Pixel Pitch LED Display（480×480）

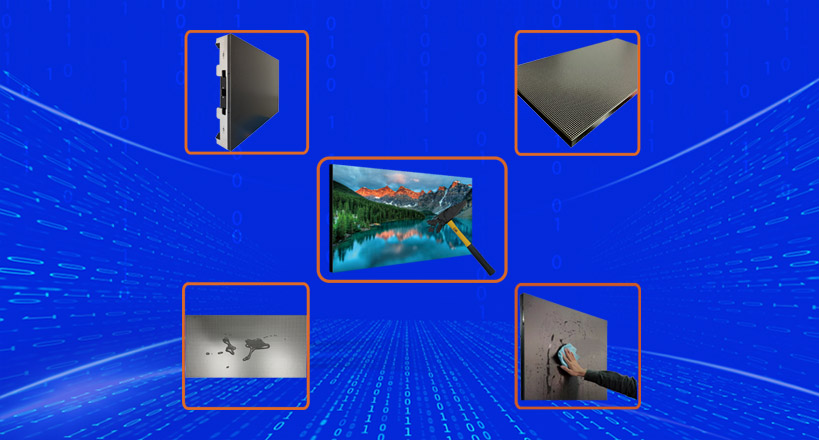

Ultra-Protective Performance And Perfect Display Effect
GOB encapsulation, surface optical processing. Ultra wide viewing angle, color to 180 degrees.
Moisture proof, waterproof dustproof, anti-impact, anti-collision, anti-static, antioxidation,
anti-blue radiation. Smooth module surface, no grainy, easy to clean.

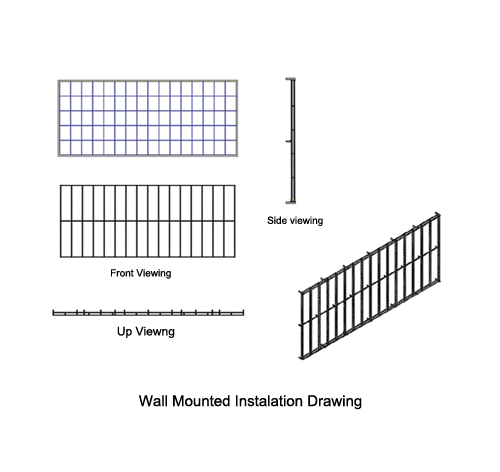

Installation Method
Applications: theater, stadium, showroom stage, monitoring room, house etc.,
Specification Sheet
| Item | P1.578 | P1.667 | P1.875 | P2.5 |
| Pixel Pitch | 1.578mm | 1.667mm | 1.875mm | 2.5mm |
| LED Encapsulation | SMD1010/1212 | SMD1010/1212 | SMD1515 | SMD2020 |
| Density (pixels/m²) | 401111 | 360000 | 284444 | 160000 |
| Brightness (cd/m²) | 200-600 | 200-600 | 200-600 | 200-600 |
| Color Temperature | 6500-9500k | |||
| Scan Mode | 1/38 | 1/36 | 1/32 | 1/32 |
| Module Size (mm) | 240mm×240mm | |||
| Module Resolution (pixels) | 152×152 | 144×144 | 128×128 | 96×96 |
| Cabinet size (mm) | 480mm×480mm | |||
| Cabinet Resolution (pixels) | 304×304 | 288×288 | 256×256 | 192×192 |
| Module Quantity | 2×2 | |||
| GOB Encapsulation | adopts new type high factor optics thermal conduction Nano filler and special technique, makes encapsulation and surface optical processing on PCB board and LED SMD lamp. | |||
| Surface Emitting | Module surface very smooth, seamless, no naked pixels, no grainy, Surface emitting, illumination is much more uniform, higher transparency, reduces glare and visual fatigue | |||
| Protective Performance | moisture proof, waterproof, dust-proof, anti-impact, anti-collision, anti-static, anti-oxidation, anti-blue radiation, anti-UV | |||
| Cabinet Material | Die casting Aluminum | |||
| Working Voltage | AC：110V~240V, 50~60Hz | |||
| MAX Power Consumption | ≤800W/ m² | |||
| AVG Power Consumption | 100W/ m²～300W/ m² | |||
| Viewing Angle | H: close to 180° V: close to 180° | |||
| Refresh Rate | 3840Hz | |||
| Gray Scale | ≧ 16bit | |||
| Contrast Ratio | 4000 : 1 | |||
| Control Method | Synchronous Control System | |||
| IP Grade | Front：IP67 Rear：IP30 | |||
| Working Temperature | -10℃～+60℃ | |||
| Working Humidity (RH） | 10％～60％ | |||
| Installation Method | Fixed Installation, Hanging Installation, Curved Installation | |||
| LED Life Span | 100000H | |||
| Certificate | FCC CE RoHs CCC | |||
Tags :

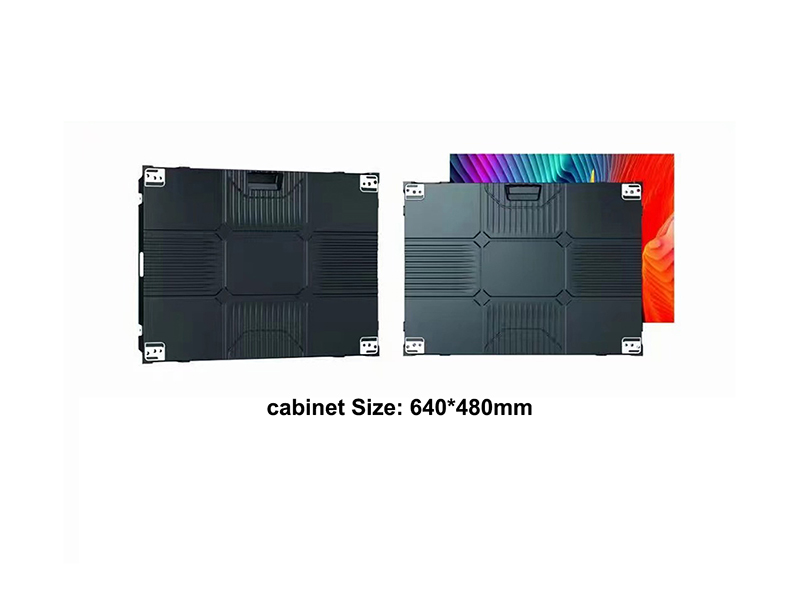

Pixel Pitch：P1.25mm, P1.53mm, P1.86mm, P2mm
Cabinet Size (L×W)：640mm×480mm
IP Grade: IP30
Multiple Cabinet designs, widely used in indoor fixed installation

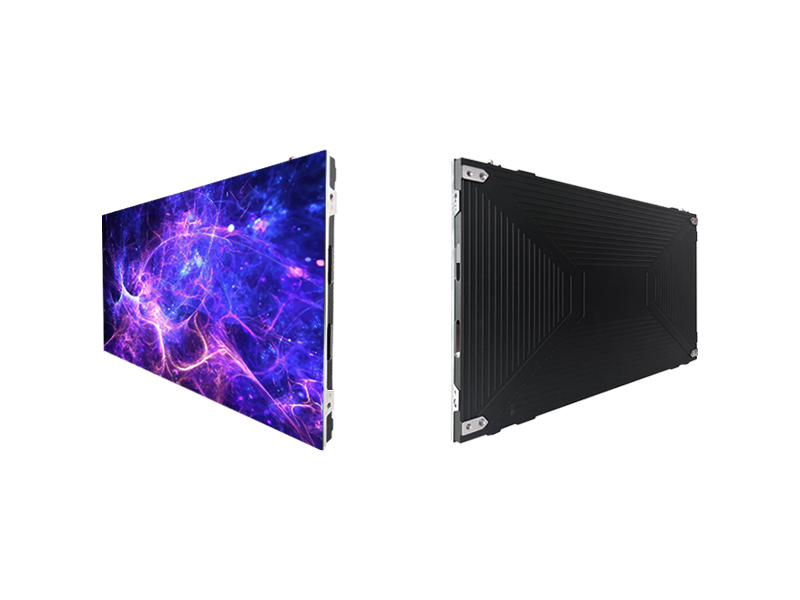

Pixel Pitch：P0.93, P1.25, P1.56, P1.87
