Pixel Pitch：P1.25mm, P1.53mm, P1.86mm, P2mm
Cabinet Size (L×W)：640mm×480mm
IP Grade: IP30
Multiple Cabinet designs, widely used in indoor fixed installation
Item No :
P1.25, P1.53, P1.86, P2Order(MOQ) :
1 setPayment :
T/T, PayPal, Western UnionProduct Origin :
ChinaColor :
full colorLead Time :
7-30 daysSmall Pixel Pitch LED Display（640×480）
FI 640*480 Series

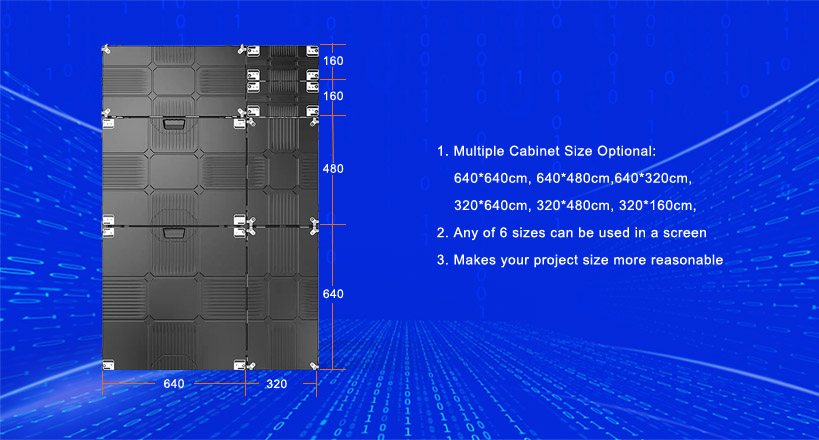

Multiple cabinet size splicing available

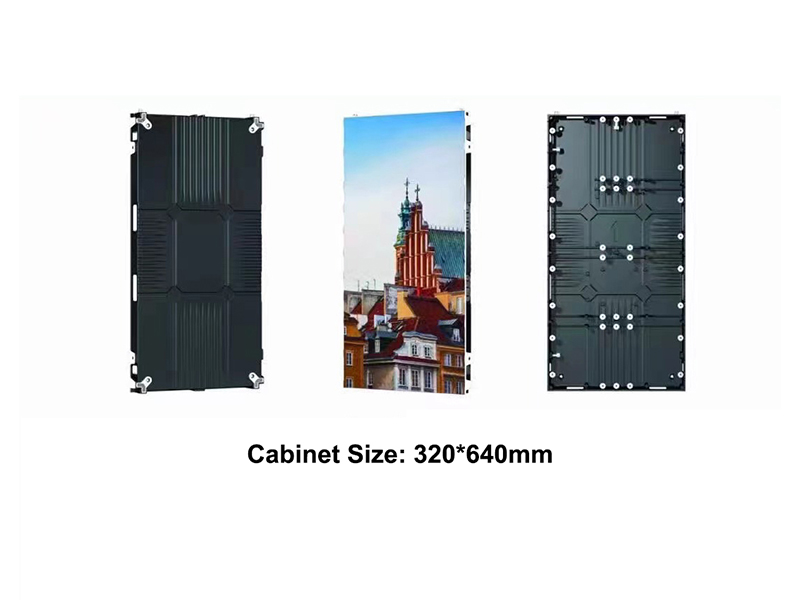

This cabinet designed 6 sizes, all of them can be used in one project,
any of them can be installed as one whole screen.

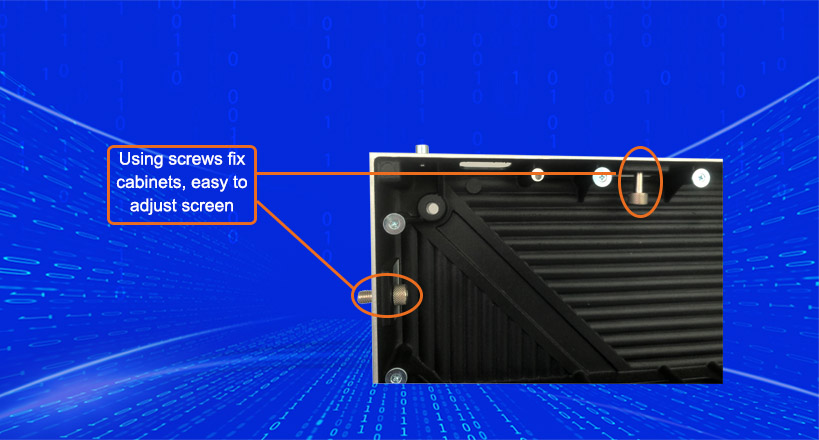

Using screws fix cabinets, more easy cabinet splicing and screen flatness adjustment.

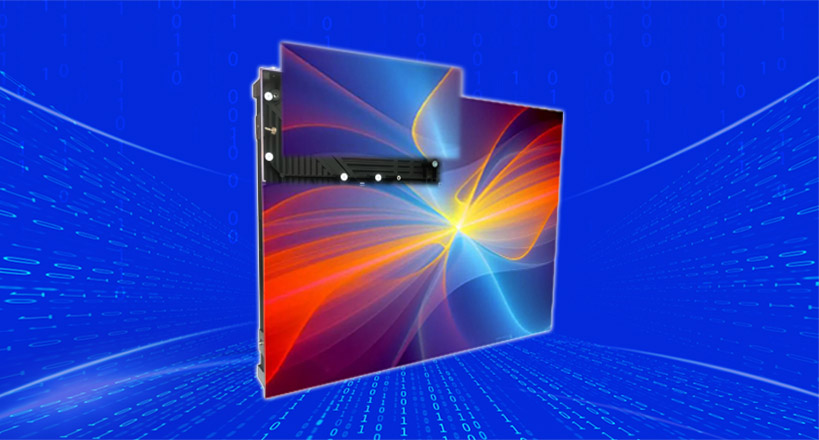

Module Front Maintenance
Module magnet service, easy front maintenance.
Installation Method
Applications: theater, stadium, showroom stage, monitoring room, house etc.,
Specification Sheet
| Item | P1.25 | P1.538 | P1.86 | P2 |
| Pixel Pitch | 1.25mm | 1.538mm | 1.86mm | 2mm |
| LED Encapsulation | SMD1010 | SMD1212 | SMD1515 | SMD1515 |
| Density （pixels/m²) | 525625 | 422500 | 288900 | 250000 |
| Brightness (cd/m²) | 200-600 | 200-600 | 200-600 | 200-600 |
| Color Temperature | 6500-9500k | |||
| Scan Mode | 1/64 | 1/52 | 1/43 | 1/40 |
| Module Size (mm) | 320mm×160mm | |||
| Module Resolution (pixels) | 256×128 | 208×104 | 172×86 | 160×80 |
| Cabinet Size (mm) | 640mm×480mm | |||
| Cabinet Resolution (pixels) | 512×384 | 416×312 | 344×258 | 320×240 |
| Module Quantity | 2×3 | |||
| Cabinet Material | Die Casting Aluminum | |||
| Working Voltage | AC：110V~240V, 50~60Hz | |||
| MAX Power Consumption | ≦ 500W/ m² | |||
| AVG Power Consumption | 100W/ m²～300W/ m² | |||
| Viewing Angle | H: close to 180° V: close to 180° | |||
| Refresh Rate | 3840Hz | |||
| Gray Scale | ≧ 14bit | |||
| Contrast Ratio | 4000:01:00 | |||
| Control Method | Synchronous Control System | |||
| IP Grade | Front：IP67 Rear：IP30 | |||
| Working Temperature | 0℃～+60℃ | |||
| Working Humidity | 10％～60％ (RH) | |||
| Installation Method | Fixed Installation, Hanging Installation, Curved Installation | |||
| LED Life Span | 100000H | |||
| Certificate | FCC, CE, RoHs, CCC | |||
