Pixel Pitch：P1.56, P1.95, P2.60, P2.97, P3.91
Module Size (L×W)：250mm×250mm
IP Grade：IP30
Different size cabinets splicing available
Item No :
P1.56, P1.95, P2.60, P2.97, P3.91Order(MOQ) :
1 setPayment :
T/T, Western Union, PaypalProduct Origin :
ChinaColor :
full colorShipping Port :
ShenzhenLead Time :
7-15 daysIndoor Fixed Installation Led Display
FI 1000*500 Series

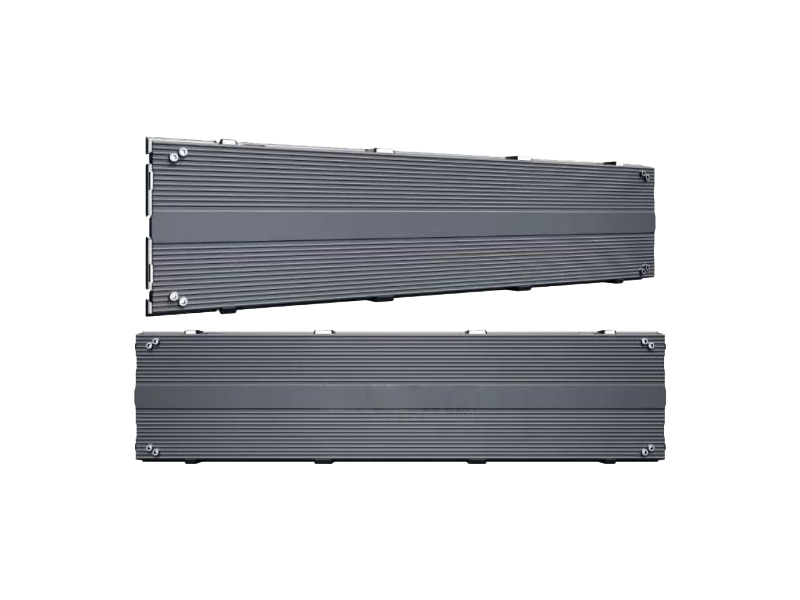

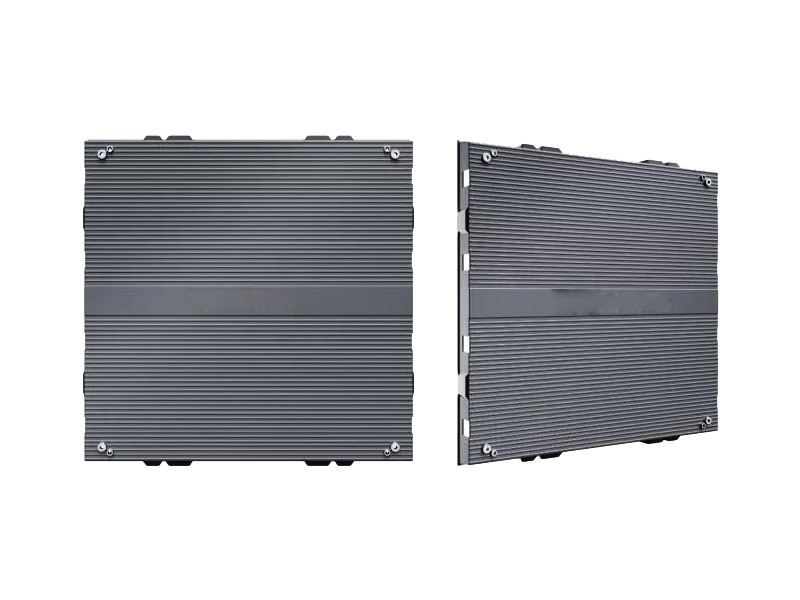

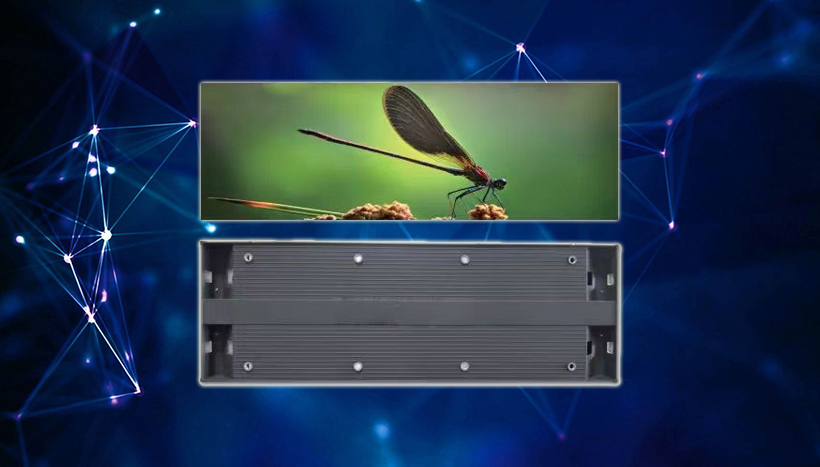

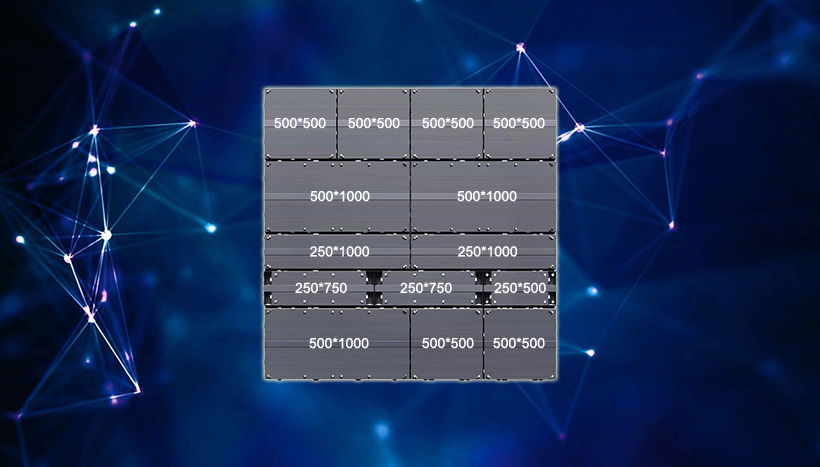

Different size cabinets splicing
6 different cabinet sizes: 1000*500mm,750*500mm, 500*500mm, 1000*250mm, 750*250mm, 500*250mm
All sizes cabinets can be spliced as one whole screen.

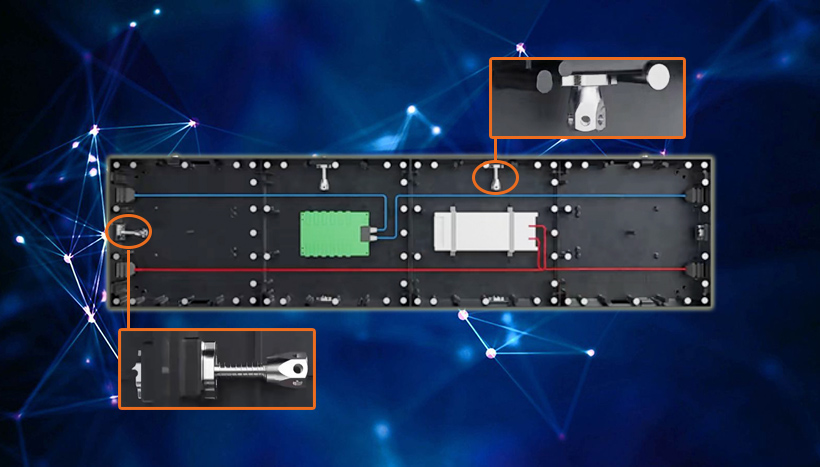

Fast And Easy Installation
Each cabinet has quick locks, can fix cabinets very easy and fast.

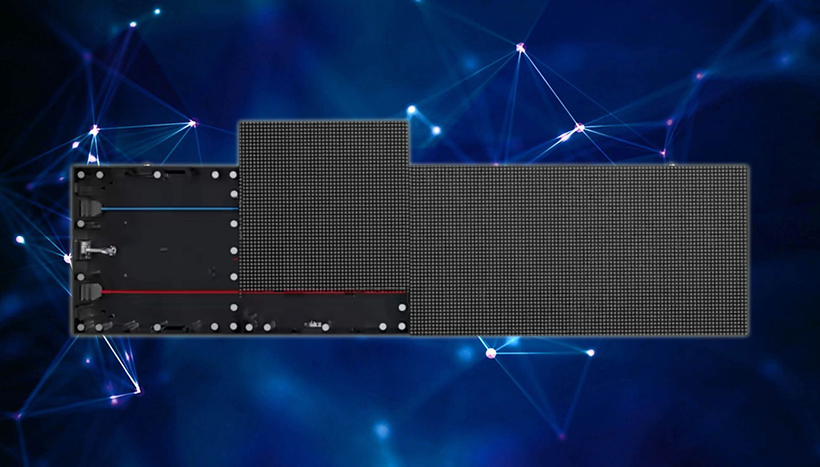

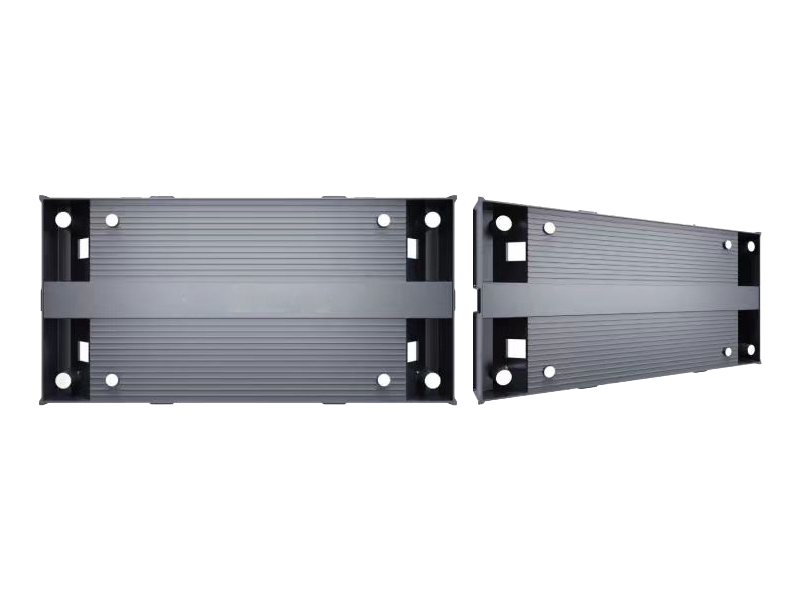

Front Maintenance Cabinet
Magnet service module splicing, full front maintenance.
Multiple Installation Method

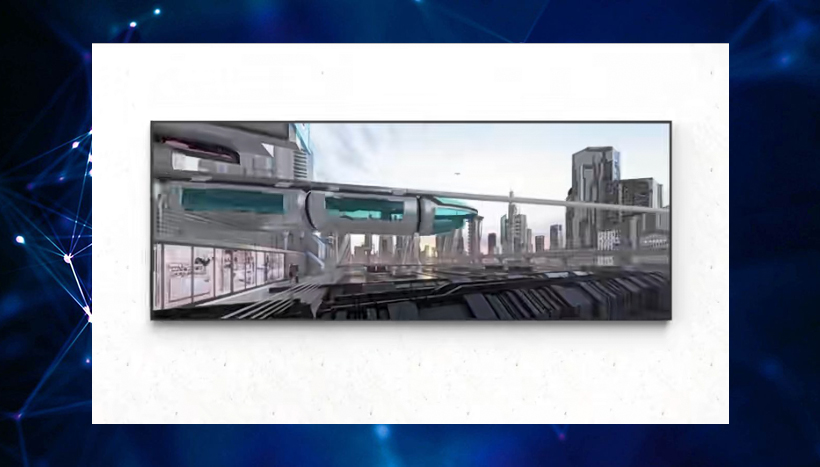

Wall mounted installation

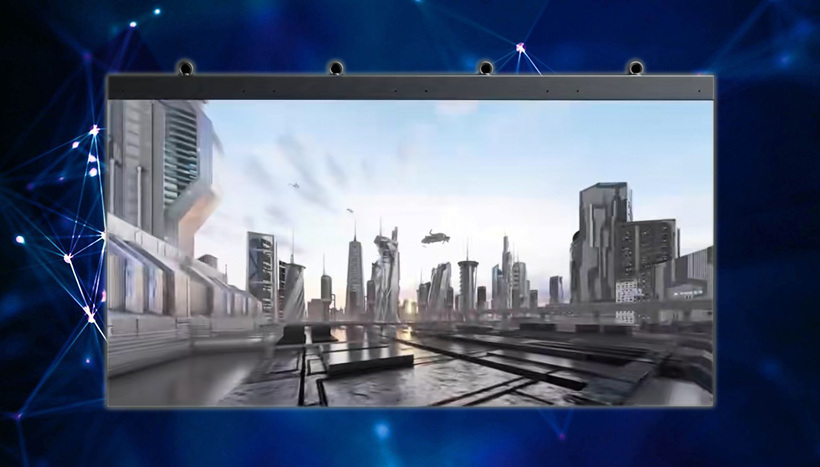

Hanging installation

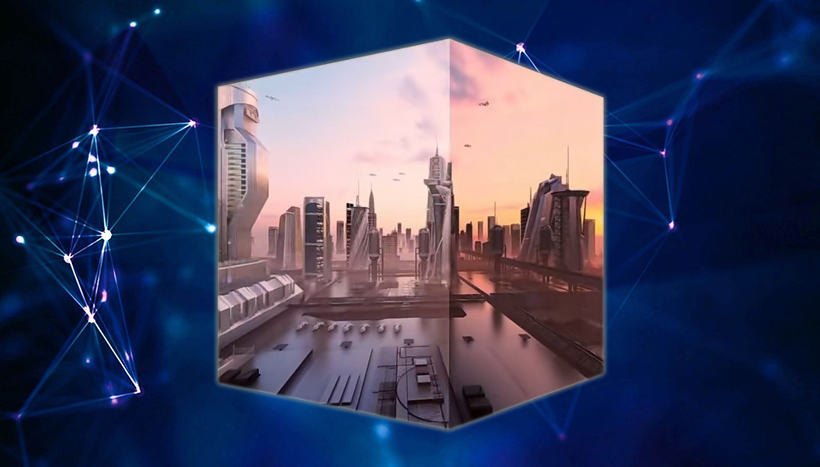

90 degrees curved installation
Specification Sheet
| Item | P1.56 | P1.95 | P2.60 | P2.97 | P3.91 |
| Pixel Pitch | 1.5625mm | 1.953mm | 2.604mm | 2.976mm | 3.91mm |
| LED Encapsulation | SMD1212 | SMD1515 | SMD1921 | SMD1921 | SMD1921 |
| Density (pixels/m²) | 409600 | 262144 | 147456 | 112896 | 65536 |
| Brightness (cd/m²) | 200-600 | 800-1100 | 800-1100 | 800-1100 | 800-1100 |
| Color Temperature | 6500-9500k | ||||
| Scan Mode | 1/32 | 1/32 | 1/32 | 1/21 | 1/16 |
| Module Size (L×W×D) | 250mm×250mm | ||||
| Module Resolution (L×W) | 160 × 160 | 128 × 128 | 96×96 | 84×84 | 64×64 |
| Cabinet Size (L×W×D) | 1000*500mm,750*500mm, 500*500mm, 1000*250mm, 750*250mm, 500*250mm | ||||
| Cabinet Material | Die casting Aluminum | ||||
| Working Voltage | AC：110V~240V，50~60Hz | ||||
| MAX Power Consumption | ≤600W/ m² | ||||
| AVG Power Consumption | 200W/ m²～300W/ m² | ||||
| Viewing Angle | H：160° V：120° | ||||
| Refresh Rate | 1920Hz/3840Hz | ||||
| Gray Scale | 14-16bit | ||||
| Highest Contrast Ratio | 8000:1 | ||||
| Control Method | synchronous Control System | ||||
| IP Grade | IP30 | ||||
| Working Temperature | -20℃～+60℃ | ||||
| Working Humidity (RH) | 10％～60％ | ||||
| LED Life Span | 100000H | ||||
| Certificate | FCC, CE, RoHs, CCC | ||||
