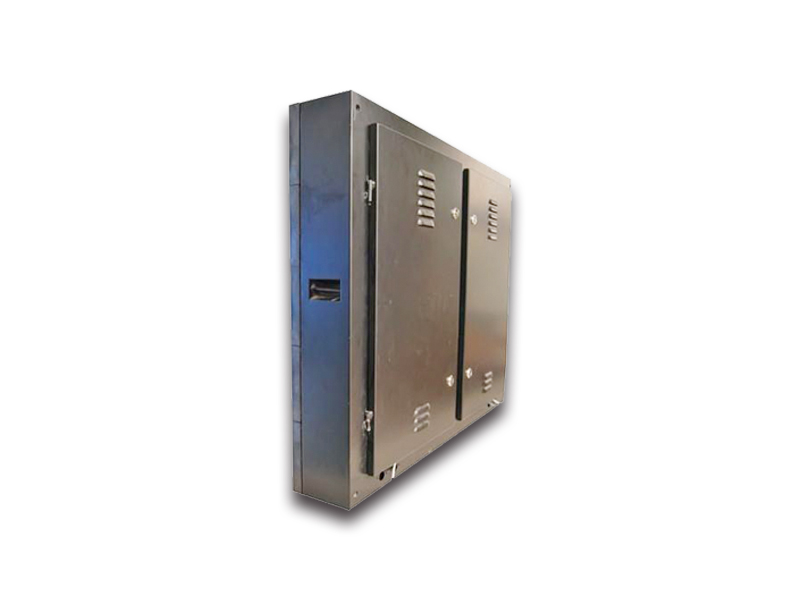

Cabinet Size (L×W)：960mm×960mm
Brightness：2000-6000cd/ m²
Cabinet Weight：42kg/sqm
IP Grade: IP65
Item No :
P2, P2.5, P3, P4, P5, P6, P8, P10Order(MOQ) :
1 setPayment :
T/T, PayPal, Western UnionProduct Origin :
ChinaColor :
Full ColorShipping Port :
ShenzhenLead Time :

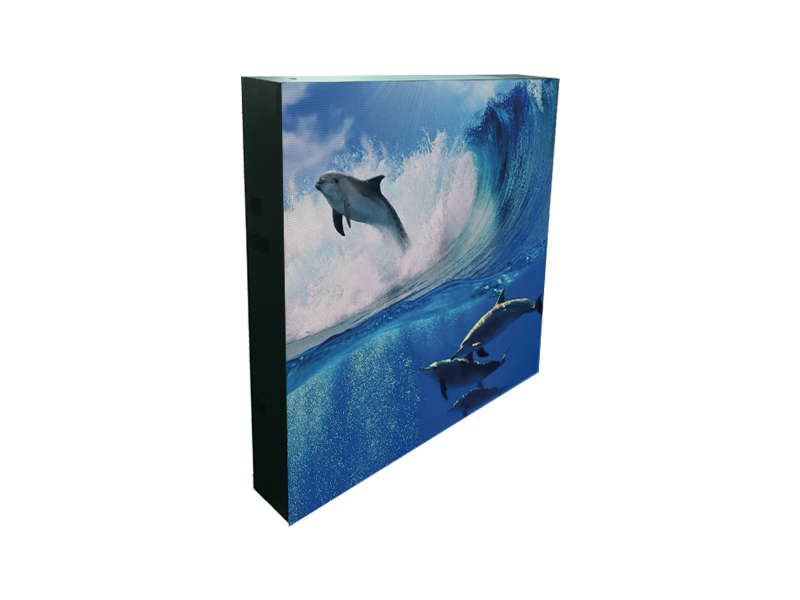

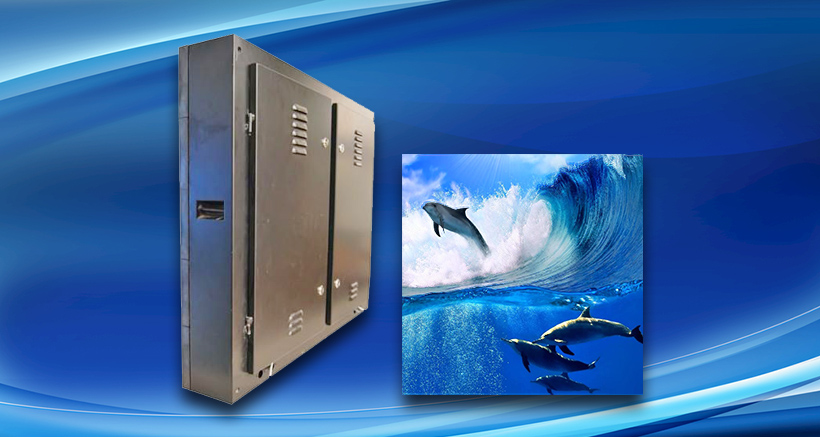

7-30 daysOutdoor Energy-Saving LED Display
FE Series
The Outdoor LED Display from Johnyel is an innovative, energy-saving solution designed for dynamic and vibrant outdoor advertising. This Outdoor LED Display offers high brightness and clear visibility even under direct sunlight, ensuring your content stands out in any environment. With advanced energy efficiency, this Outdoor LED Display helps reduce power consumption while delivering top-notch performance.

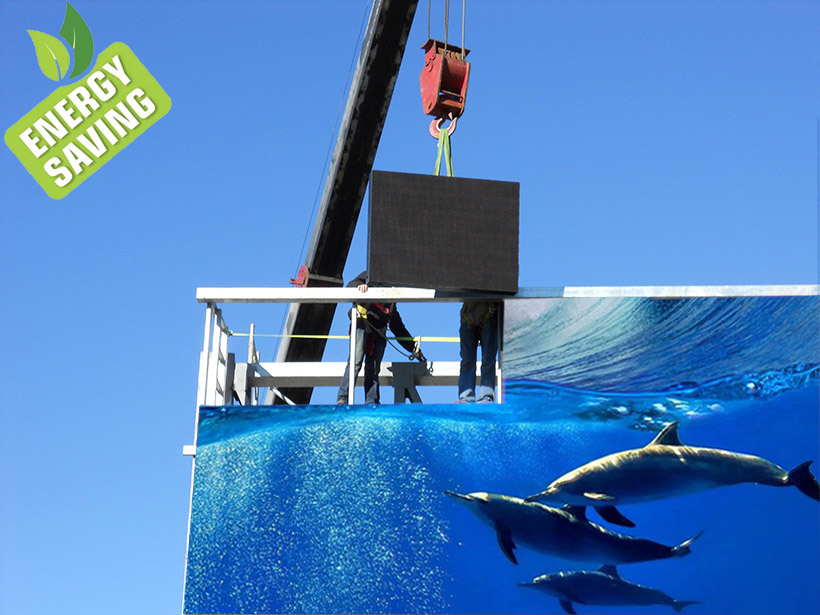

Energy Saving LED Display
Adopt common cathode design and specialized driving ICs, makes led displays achieve 35%-40% energy saving.

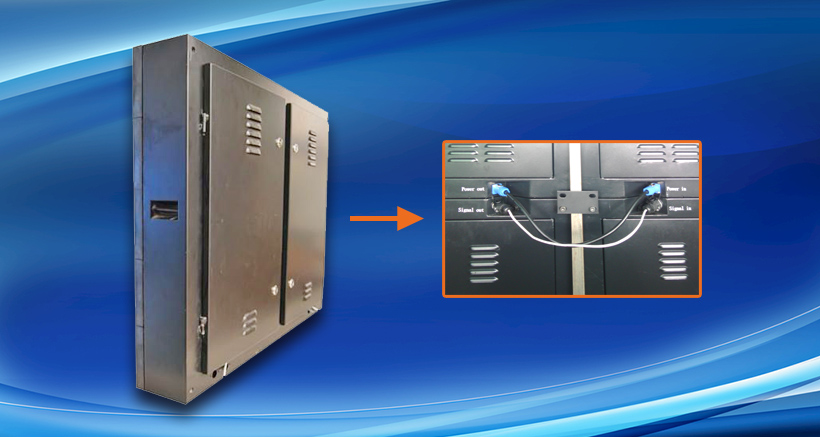

Fast and Easy installation
Cabinet assembles fast installation signal and power cables, makes led wall installation more easy and fast.

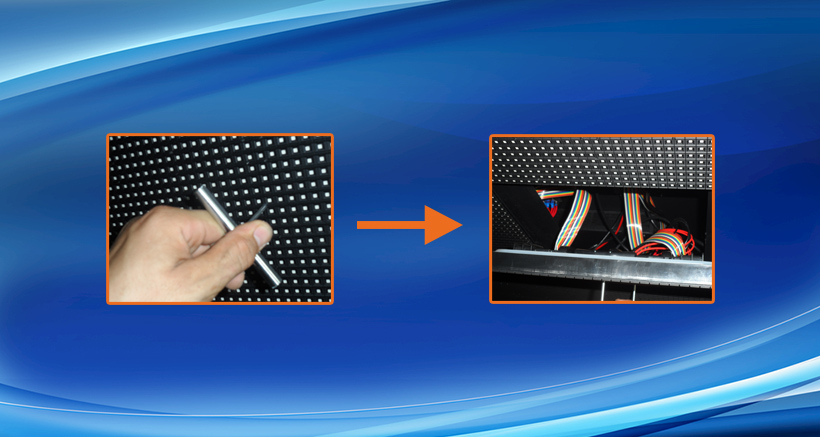

Module Front Maintenance
Modules can be front and rear maintenance.
90 Degrees Curved Installation
Specification Sheet
| Outdoor Small Pixel Pitch LED Display | ||||
| Item | P2 | P2.5 | P3 | P4 |
| Pixel Pitch | 2mm | 2.5mm | 3mm | 4mm |
| LED Encapsulation | SMD1211 | SMD1921 | SMD1921 | SMD2727 |
| Density ( pixels/m²) | 250000 | 160000 | 111111 | 62500 |
| Brightness (cd/m²) | 2000-4500 | 2000-4500 | 2000-5000 | 3000-5000 |
| Scan Mode | 1/20 | 1/16 | 1/16 | 1/10 |
| Module Size (L×W) | 160mm×160mm | 160mm×160mm | 192mm×192mm | 320mm×160mm |
| Module Resolution (L×W) | 80×80 | 64×64 | 64×64 | 80×40 |
| Outdoor Normal Pitch LED Display | ||||
| Item | P5 | P6 | P8 | P10 |
| Pixel Pitch | 5mm | 6mm | 8mm | 10mm |
| LED Encapsulation | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Density ( pixels/m²) | 40000 | 27777 | 15625 | 10000 |
| Brightness (cd/m²) | 5000 | 5000 | 5000 | 6000 |
| Color Temperature | 6500-9500k | |||
| Scan Mode | 1/8 | 1/8 | 1/5 | 1/2 |
| Module Size (L×W) | 320mm×160mm | 192mm×192mm | 320mm×160mm | 320mm×160mm |
| Module Resolution (L×W) | 64×32 | 32×32 | 40×20 | 32×16 |
| Cabinet size (L×W×D) | 960mm×960mm | |||
| Cabinet Resolution (L×W) | 192×192 | 160×160 | 120×120 | 96×96 |
| Cabinet Material | Iron made standard cabinet | |||
| Screen Weight | 42 kg/sqm | |||
| Working Voltage | AC：110V~240V, 50~60Hz | |||
| MAX Power Consumption | ≤600W/ m² | |||
| AVG Power Consumption | 200W/ m²～300W/ m² | |||
| Viewing Angle | H：140° V: 120° | |||
| Refresh Rate | 1920Hz/3840Hz | |||
| Gray Scale | 14-16bit | |||
| highest Contrast Ratio | 6000:1 | |||
| Control Method | Synchronous Control System | |||
| IP Grade | IP67 | |||
| Working Temperature | -10℃～+60℃ | |||
| Working Humidity (RH) | 10％～90％ RH | |||
| Installation Method | Fixed Installation, Hanging Installation, Curved Installation | |||
| Signal Input | AV, DVI, HDMI, SDI, S-videom, DP etc., | |||
| LED Life Span | 100000H | |||
| Certificate | FCC, CE, RoHs, CCC |
|||
