Pixel Pitch：P1.25, P1.53, P1.86, P2, P2.5
Screen Size: 640* 1920mm
Cabinet Size: 640*480mm
Cabinet Material: die casting aluminum cabinet
Brightness：200-600cd/ m²
Item No :
P1.25, P1.53, P1.86, P2, P2.5Order(MOQ) :
1 setPayment :
T/T, PayPal, Western UnionProduct Origin :
ChinaColor :
Full ColorShipping Port :
ShenzhenLead Time :
7-15 daysSmall Pixel Pitch LED Poster Screen

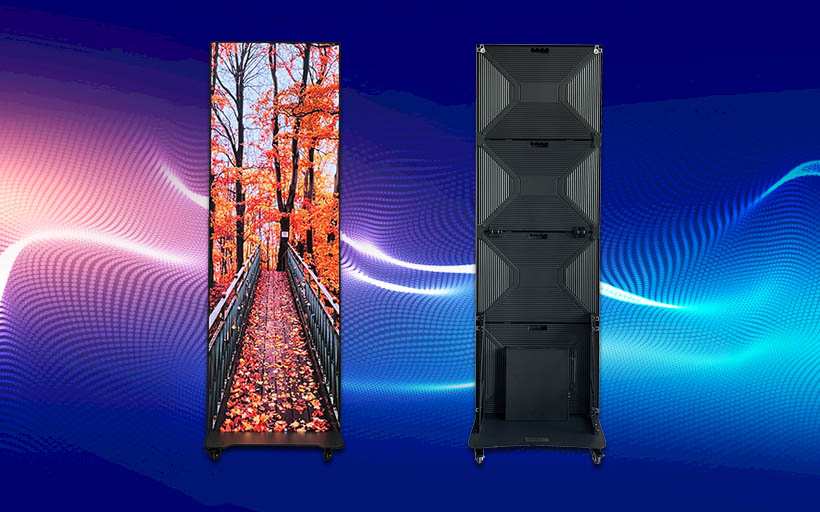

The HD GOB LED Poster is a high-definition display with a small pixel pitch, delivering exceptional image clarity for indoor advertising. Utilizing advanced GOB encapsulation, it offers strong resistance to dust, water, and impacts, ensuring durability. Its slim and modular design allows for easy installation and maintenance, making it ideal for various commercial environments. The poster’s vibrant visuals and reliable performance enhance visibility in shopping malls, trade shows, and corporate events. The HD GOB LED Poster is an innovative solution for impactful, high-quality displays.
PF Series

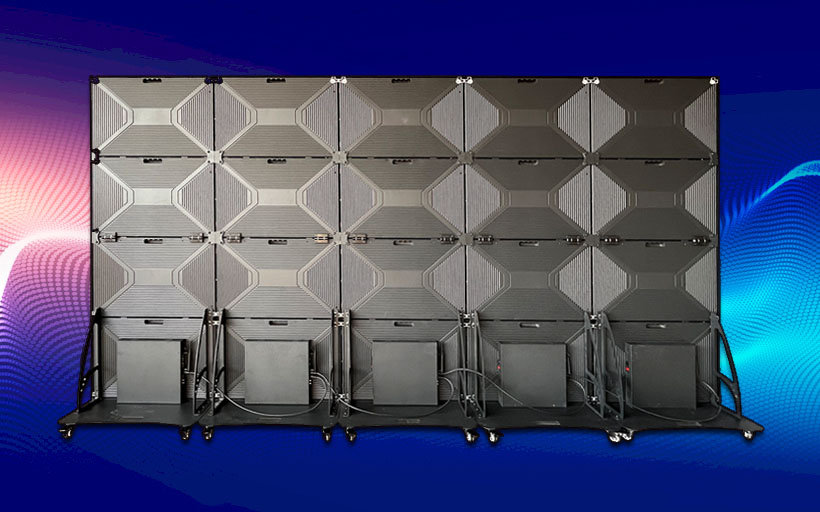

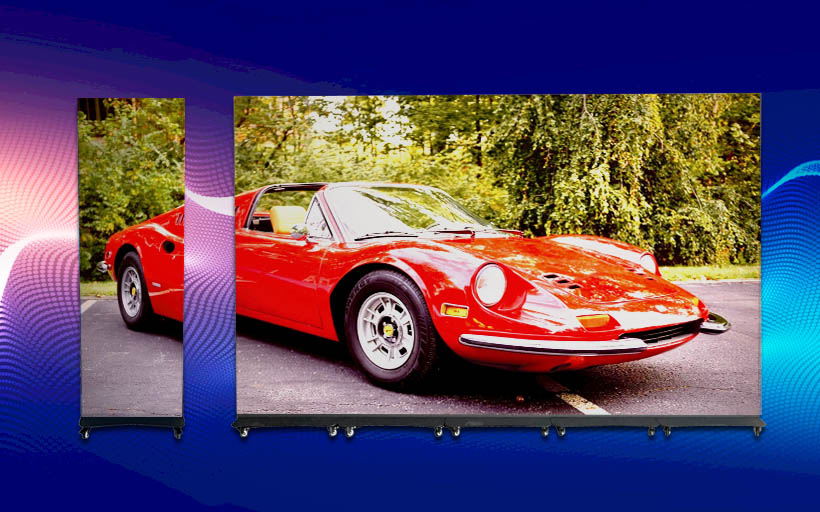

Multiple working mode
Single/cascade mode, multiple posters seamless stitching available in cascade mode.

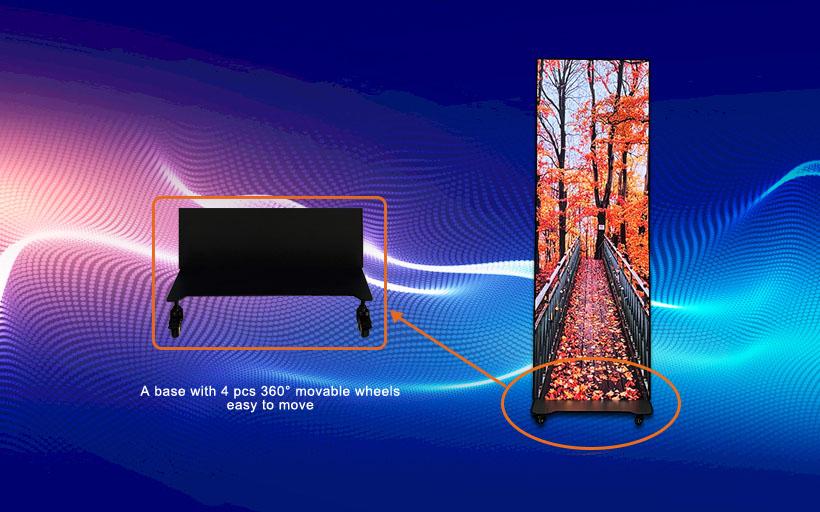

Movable LED Poster
LED posters have a base with 4 pcs 360° movable wheels.

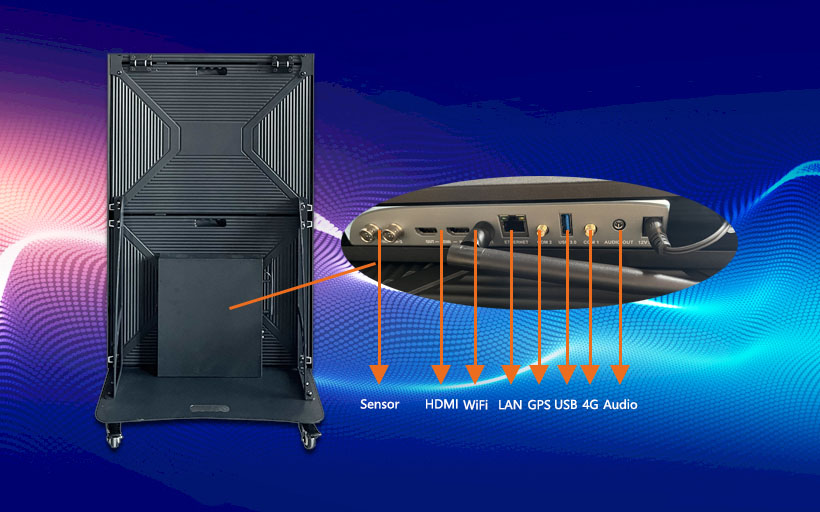

Wireless Control LED Poster
Wireless signal: Wi-Fi, USB, 4G

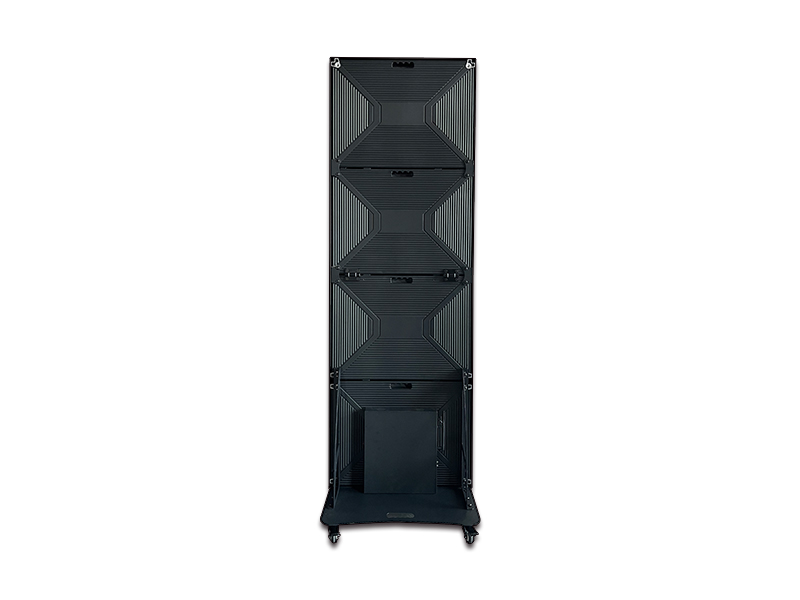

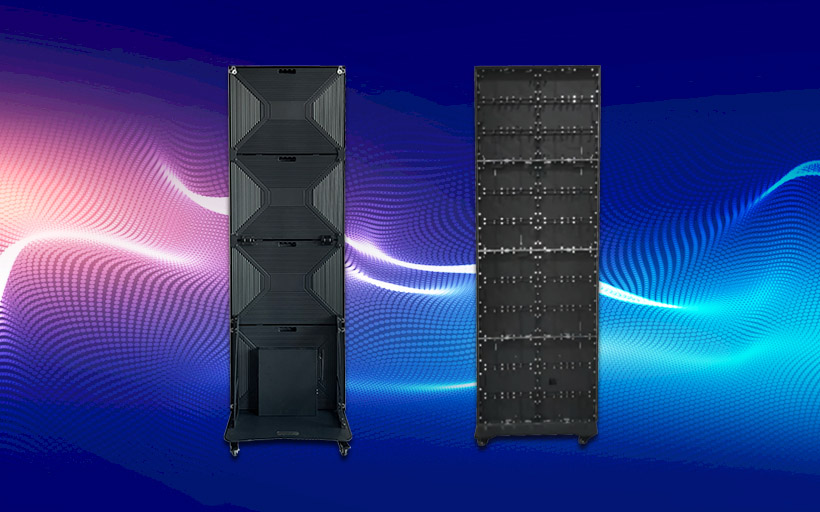

Die Casting Aluminum LED Screen Cabinet
Module front maintenance, ultra screen flatness.

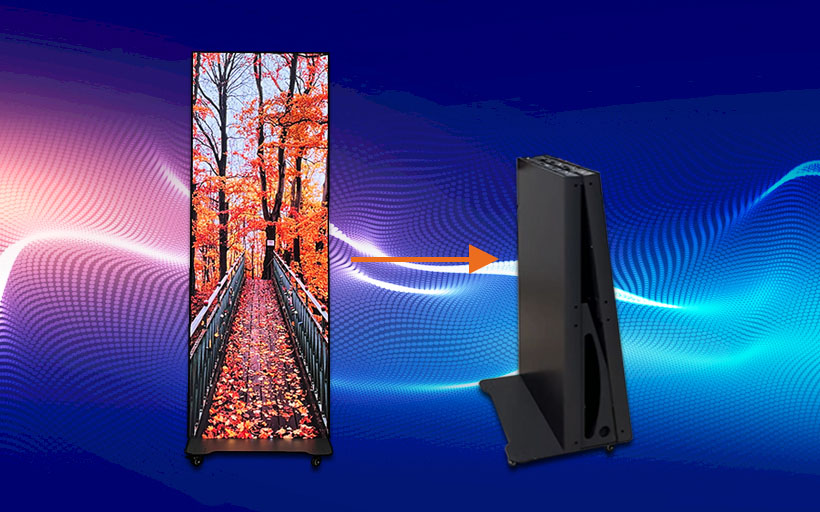

Foldable LED Poster
LED screen body can be folded, easy to transportation and package
GOB LED Poster Available
Specification Sheet
| Item | P1.25 | P1.53 | P1.86 | P2 | P2.5 |
| Pixel Pitch | 1.25mm | 1.538mm | 1.86mm | 2mm | 2.5mm |
| LED Encapsulation | SMD1010 | SMD1010 | SMD1515 | SMD1515 | SMD2020 |
| Density (pixel/m²) | 640000 | 422500 | 289444 | 250000 | 160000 |
| Brightness (cd/m²) | 200-600 | ||||
| Color Temperature | 6500-9500k | ||||
| Scan Mode | 1/64 | 1/32 | 1/43 | 1/32 | 1/32 |
| Cabinet Size | 640mm × 480mm | ||||
| Cabinet Material | Die casting aluminum | ||||
| Screen Size | 640mm ×1920mm | ||||
| Screen Resolution | 512×1536 | 416×1248 | 344×1032 | 320 ×960 | 256 ×768 |
| Module Quantity | 3 ×12 | ||||
| Working Voltage | AC：110V~240V、50~60Hz | ||||
| Max Power Consumption | ≤800 | ||||
| AVG Power Consumption | 100W/ m²～300W/ m² | ||||
| Refresh Rate | 3840Hz | ||||
| Gray Scale | 14-18bit | ||||
| Max Contrast Rate | 6000 ：1 | ||||
| Control Method | Synchronous/Asynchronous Control | ||||
| Working Temperature | 0℃～+60℃ | ||||
| Working Humidity | 10％～60％RH | ||||
| LED Life Span | 100000H | ||||
| Input Interface | LAN×1, USB×1, AUDIO×1, HDMI×1 | ||||
| Wireless Control | WIFI, USB, 4G (optional) | ||||
| Video/Photo Format | Video: AVI, WMV, RMVB, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM etc., |
||||
| Photo: BMP, GIF, JPG, JPEG, PNG, PBM, PGM, PPM, XPM, XBM etc., | |||||
| Operation Equipment | Mobile, tablet, PC | ||||
| Certificate | FCC, CE, RoHs, CCC | ||||
