Cabinet Material: Iron made cabinet, square iron frame
Brightness: 200-1100cd/m²
IP Grade: IP43
Item No :
P1.25, P1.53, P1.86, P2, P2.5, P3.076, P4Order(MOQ) :
1 setPayment :
T/T, Western Union, PayPalProduct Origin :
ChinaColor :
Full ColorShipping Port :
ShenzhenLead Time :

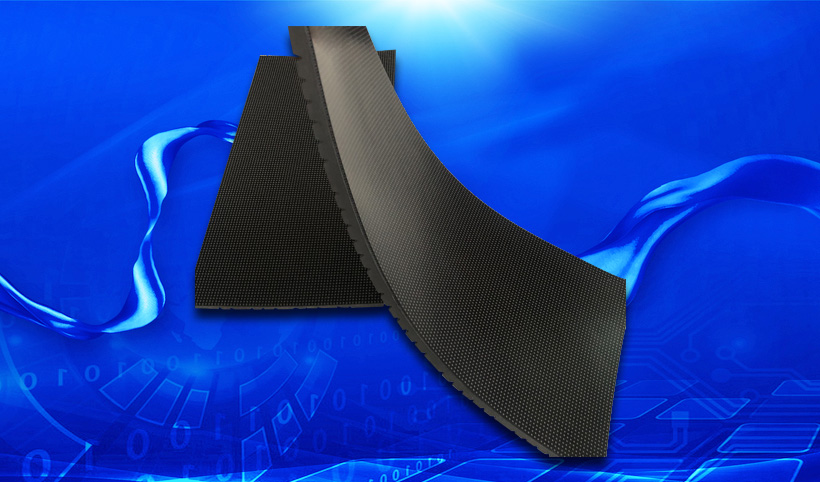

7-15 daysFlexible LED Display
CF Series
Module Size: 320*160, Pixel Pitch: P1.25, P1.53, P1.86, P2, P2.5, P3.076, P4

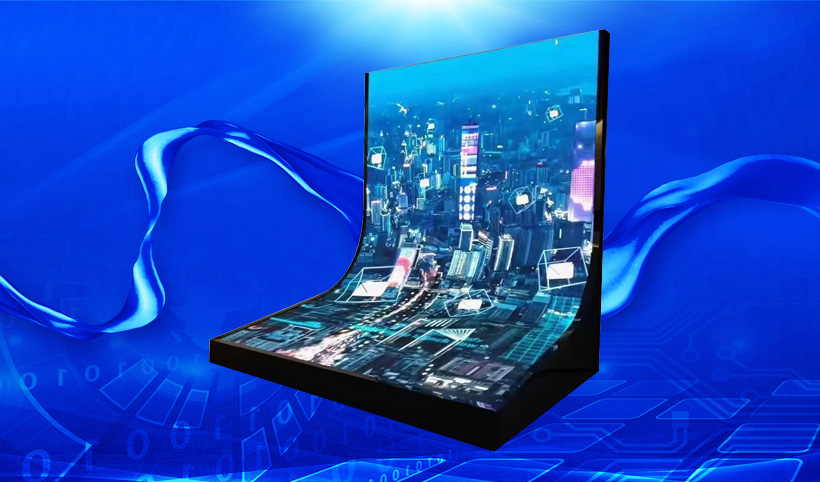

Applications: fixed installation 360 degrees curved, multiple shape flexible led screen

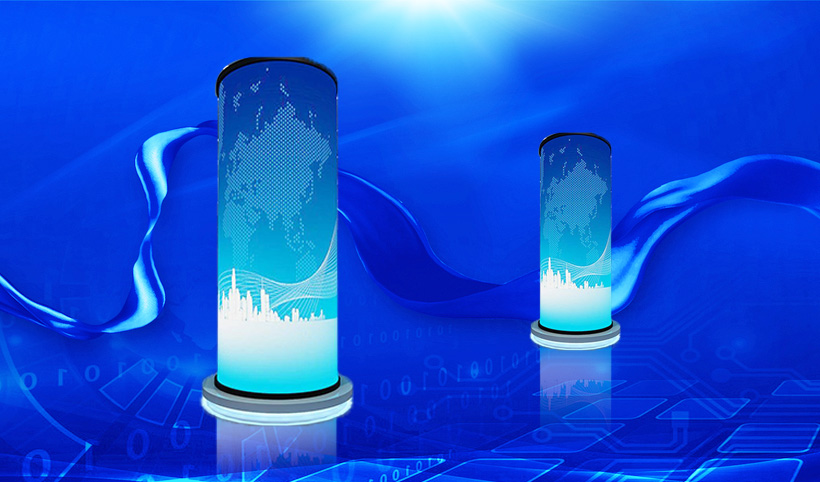

Flexible Cylinder LED Display

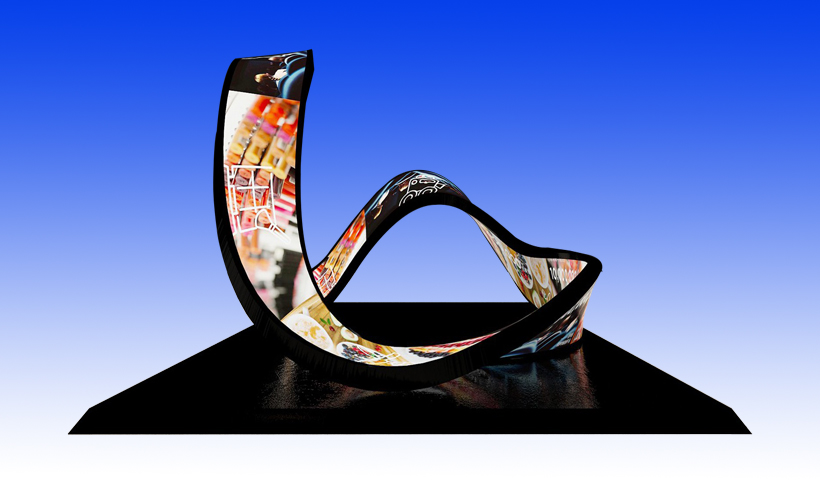

Flexible Mobius Strip LED Display
Indoor Flexible LED Display

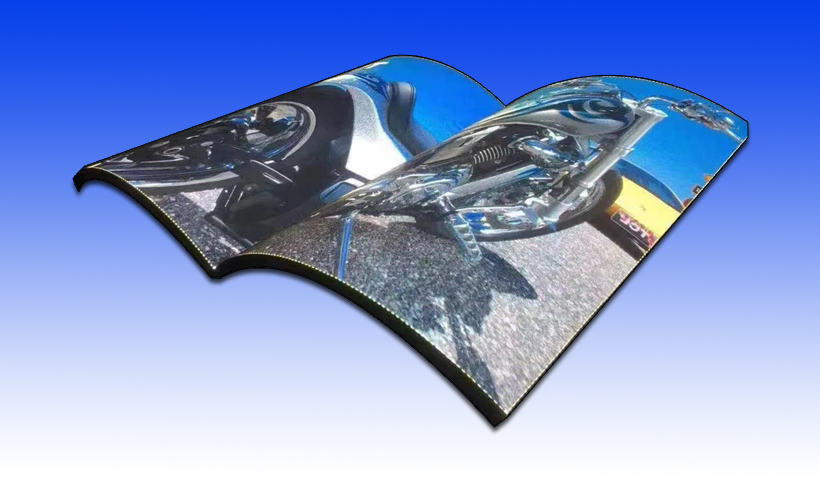

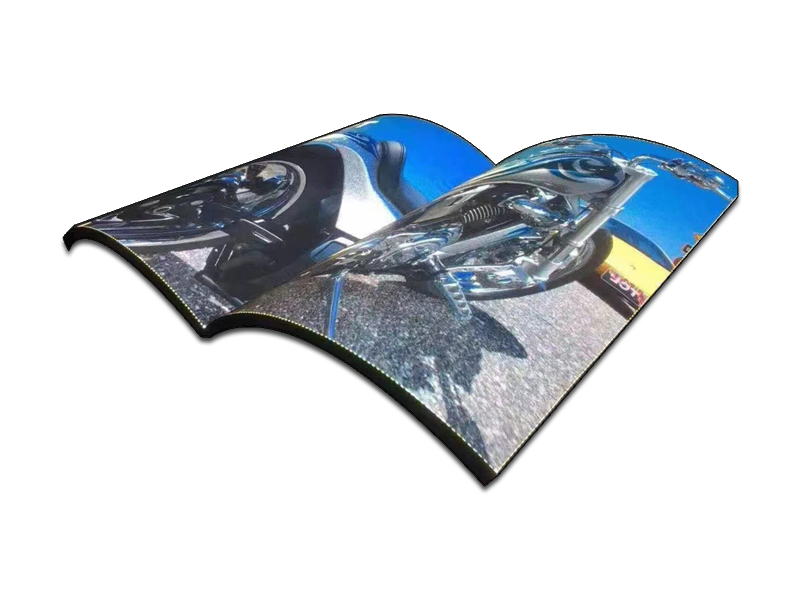

Book Shaped LED Screen

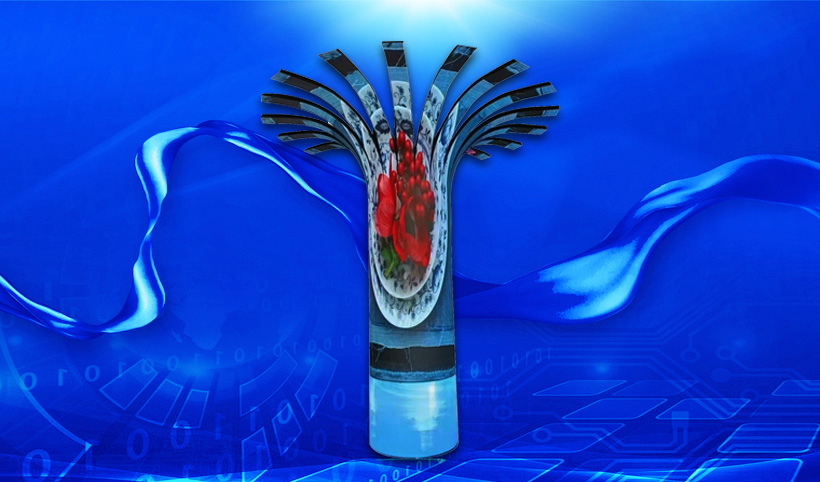

All the special-Shaped LED display applications can do GOB type.
Specification Sheep
| Item | P1.25 | P1.538 | P1.86 | P2 | P2.5 | P3.076 | P4 |
| Pixel Pitch | 1.25mm | 1.538mm | 1.86mm | 2mm | 2.5mm | 3.076mm | 4mm |
| LED Encapsulation | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD2121 | SMD2122 | SMD2123 |
| Density （pixels/m²) | 525625 | 422500 | 288900 | 250000 | 160000 | 105656 | 62500 |
| Brightness (cd/m²) | 200-600 | 200-600 | 200-600 | 200-600 | 200-600 | 200-600 | 200-600 |
| Color Temperature | 6500-9500k | ||||||
| Working Voltage | AC：110V~240V, 50~60Hz | ||||||
| MAX Power Consumption | ≦ 500W/ m² | ||||||
| AVG Power Consumption | 100W/ m²～300W/ m² | ||||||
| Viewing Angle | H: 160° V: 140° | ||||||
| Refresh Rate | 3840Hz | ||||||
| Gray Scale | ≧ 14bit | ||||||
| Contrast Ratio | 6000:1 | ||||||
| Control Method | Synchronous Control System | ||||||
| IP Grade | Rear：IP30 | ||||||
| Working Temperature | 0℃～+60℃ | ||||||
| Working Humidity | 10％～60％ (RH) | ||||||
| Installation Method | Fixed Installation, Hanging Installation, Curved Installation | ||||||
| LED Life Span | 100000H | ||||||
| Certificate | FCC, CE, RoHs, CCC | ||||||
Tags :
Pixel Pitch：P1.25, P1.53, P1.86, P2, P2.5
Screen Size: 640* 1920mm
Brightness：200-600cd/ m²
Cabinet Size: 500*1000mm
Cabinet Resolution: 64*256 pixels
IP Grade: IP30
Cabinet Material: Iron made cabinet, square iron frame
Brightness: 200-1100cd/m²
IP Grade: IP43
Cabinet Material: Iron made cabinet, die casting aluminum cabinet
Brightness: Indoor: 200-1100cd/m², outdoor: 2000-5000cd/m²
IP Grade: Indoor: IP43, outdoor: IP65
Pixel Pitch：P1.25, P1.53, P1.86, P2, P2.5
Screen Size: 640* 1920mm
Cabinet Size: 640*480mm
Cabinet Material: die casting aluminum cabinet
Brightness：200-600cd/ m²
