Cabinet Material: Iron made cabinet, die casting aluminum cabinet
Brightness: Indoor: 200-1100cd/m², outdoor: 2000-5000cd/m²
IP Grade: Indoor: IP43, outdoor: IP65
Item No :
P1.25, P1.53, P1.86, P2, P2.5, P3.076, P4Order(MOQ) :
1 setPayment :
T/T, Western Union, PayPalProduct Origin :
ChinaColor :
Full ColorShipping Port :
ShenzhenLead Time :
7-15 daysSpecial Shaped LED Display
CS Series
Multiple Applications
Curved fixed installation led display, stair led display, and other special shaped led displays

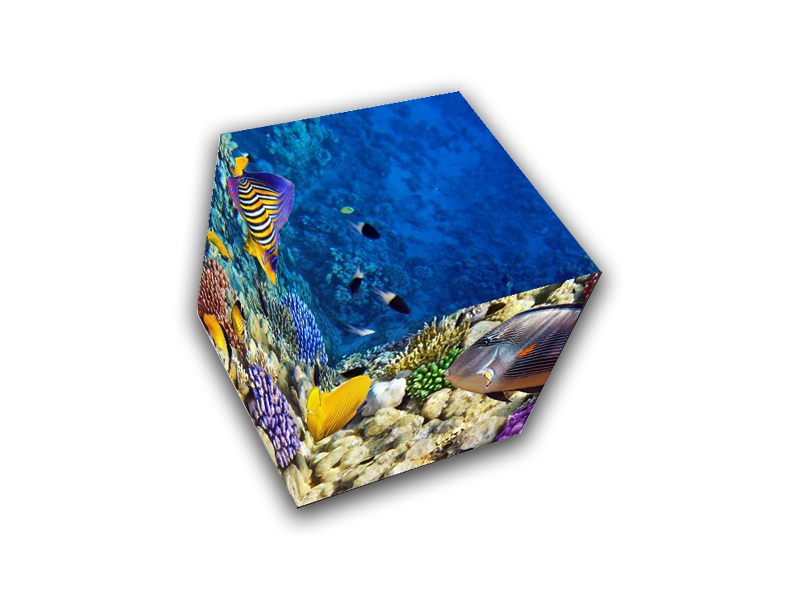

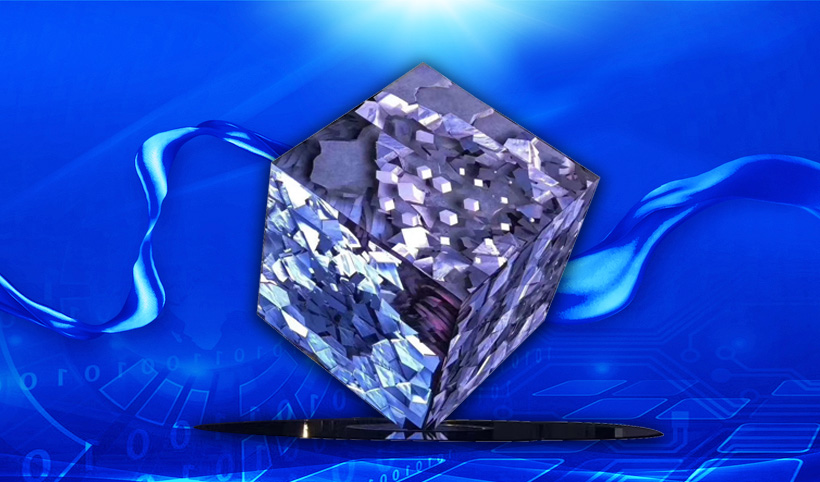

LED Magic Cube Screen

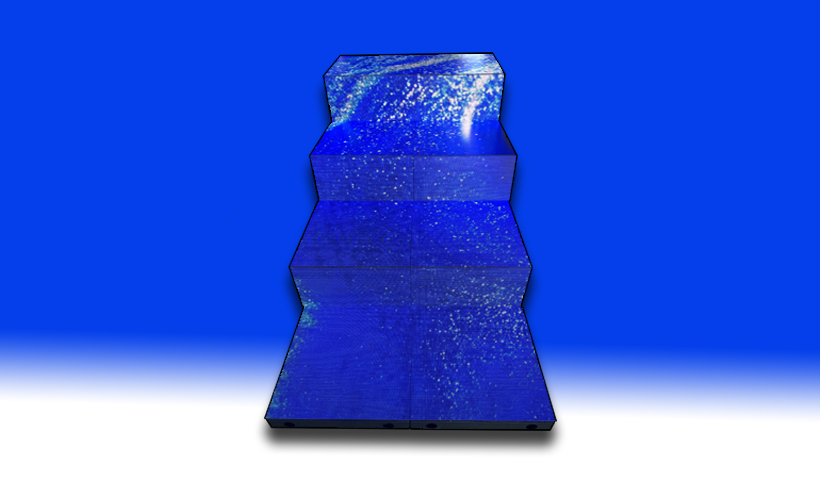

Stair LED Display

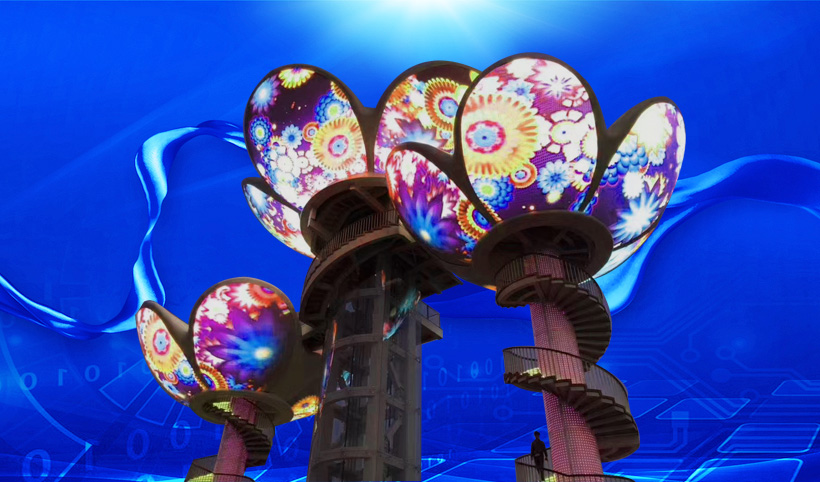

Other Special-Shaped LED Display Applications

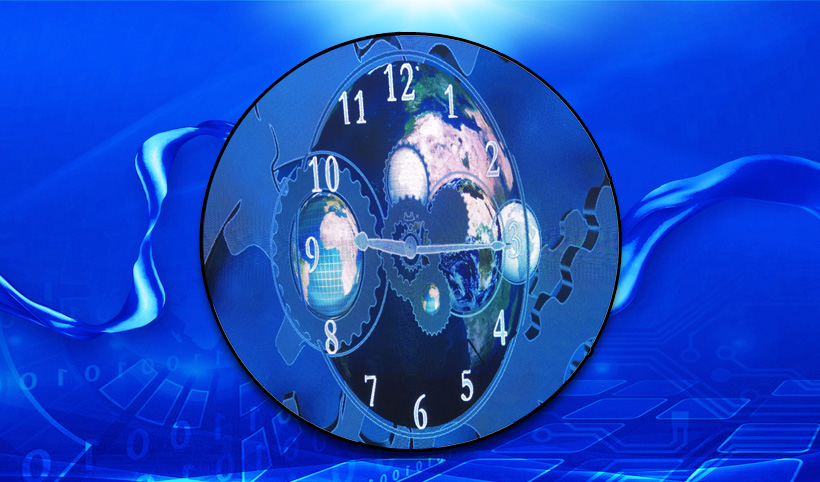

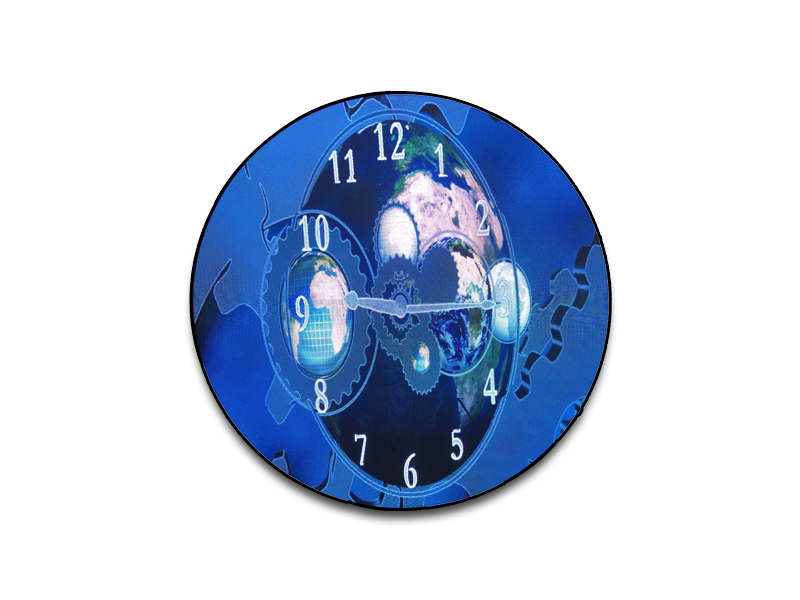

Circle LED Display

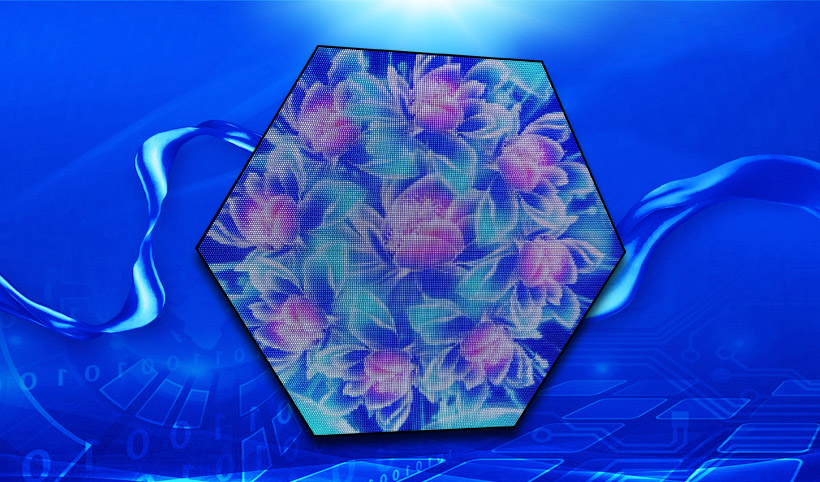

Hexagon LED Screen

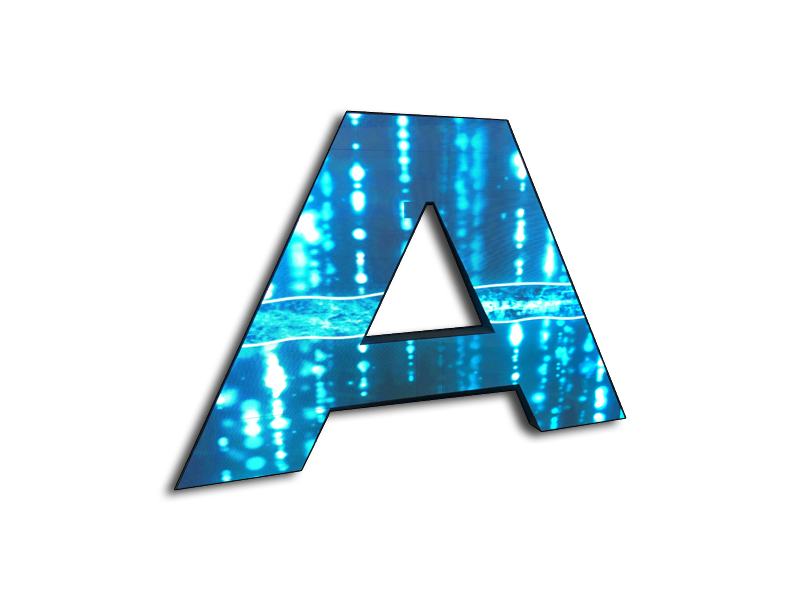

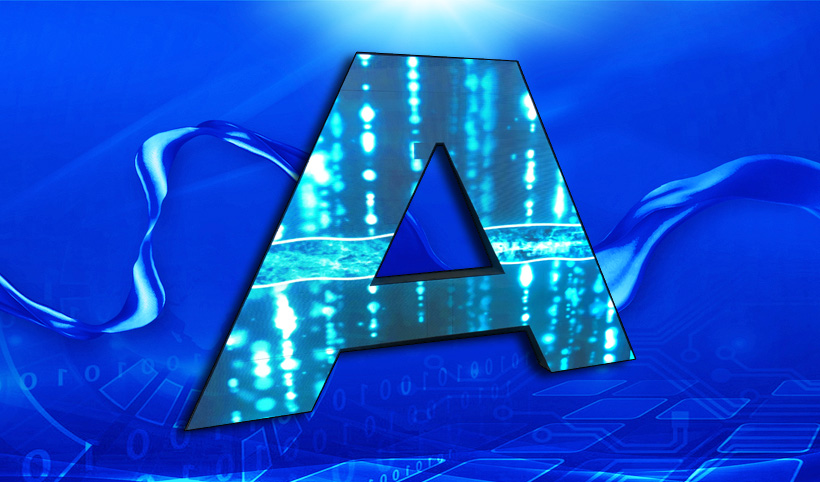

LED Letter Display Sign

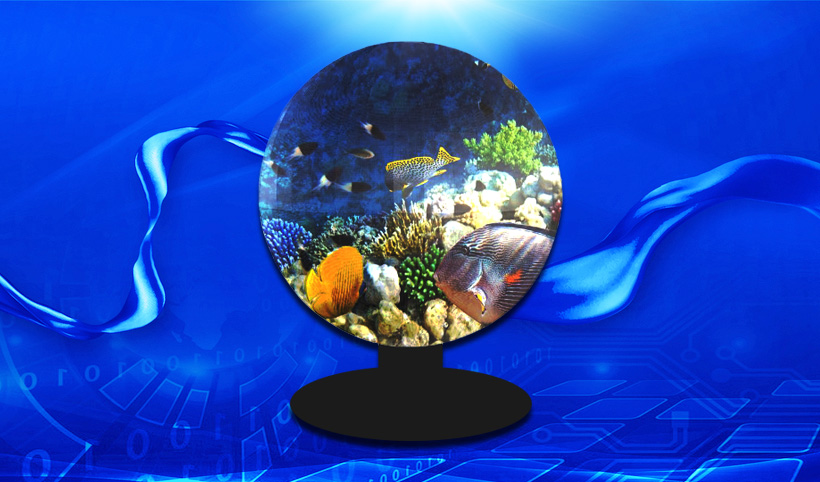

LED Ball Screen
All the special-Shaped LED display applications can do GOB type.
Specification Sheet
| Item | P1.25 | P1.538 | P1.86 | P2 | P2.5 | P3.076 | P4 |
| Pixel Pitch | 1.25mm | 1.538mm | 1.86mm | 2mm | 2.5mm | 3.076mm | 4mm |
| LED Encapsulation | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD2121 | SMD2122 | SMD2123 |
| Density （pixels/m²) | 525625 | 422500 | 288900 | 250000 | 160000 | 105656 | 62500 |
| Brightness (cd/m²) | 200-600 | 200-600 | 200-600 | 200-600 | 200-600 | 200-600 | 200-600 |
| Color Temperature | 6500-9500k | ||||||
| Working Voltage | AC：110V~240V, 50~60Hz | ||||||
| MAX Power Consumption | ≦ 500W/ m² | ||||||
| AVG Power Consumption | 100W/ m²～300W/ m² | ||||||
| Viewing Angle | H: 160° V: 140° | ||||||
| Refresh Rate | 3840Hz | ||||||
| Gray Scale | ≧ 14bit | ||||||
| Contrast Ratio | 166.6673611 | ||||||
| Control Method | Synchronous Control System | ||||||
| IP Grade | Rear：IP30 | ||||||
| Working Temperature | 0℃～+60℃ | ||||||
| Working Humidity | 10％～60％ (RH) | ||||||
| Installation Method | Fixed Installation, Hanging Installation, Curved Installation | ||||||
| LED Life Span | 100000H | ||||||
| Certificate | FCC, CE, RoHs, CCC | ||||||
