Cabinet Size: 500*1000mm
Cabinet Resolution: 64*256 pixels
IP Grade: IP30
Item No :
P3.9-7.8, P7.8-7.8, P10.4-10.4Order(MOQ) :
1 setPayment :
T/T, Western Union, PayPalProduct Origin :
ChinaColor :
Full ColorShipping Port :
ShenzhenLead Time :

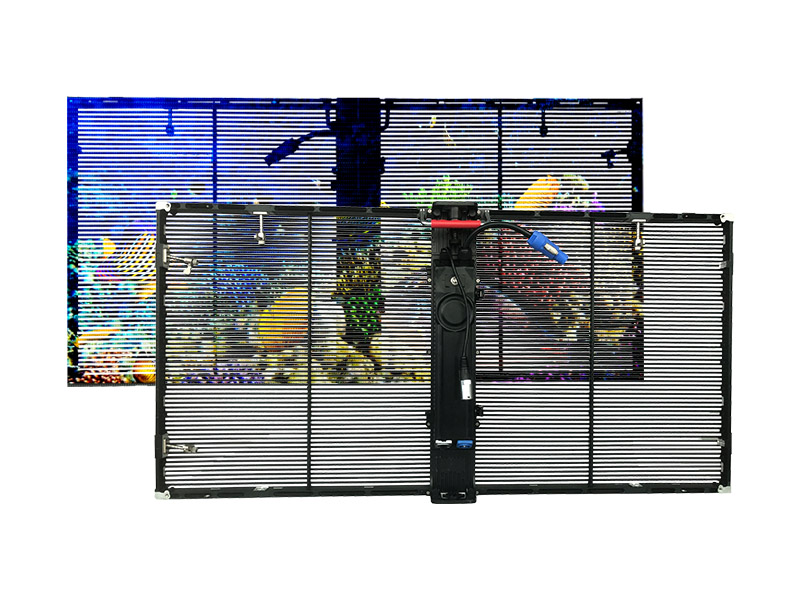

7-15 daysTransparent LED Curtain Screen
CT Series

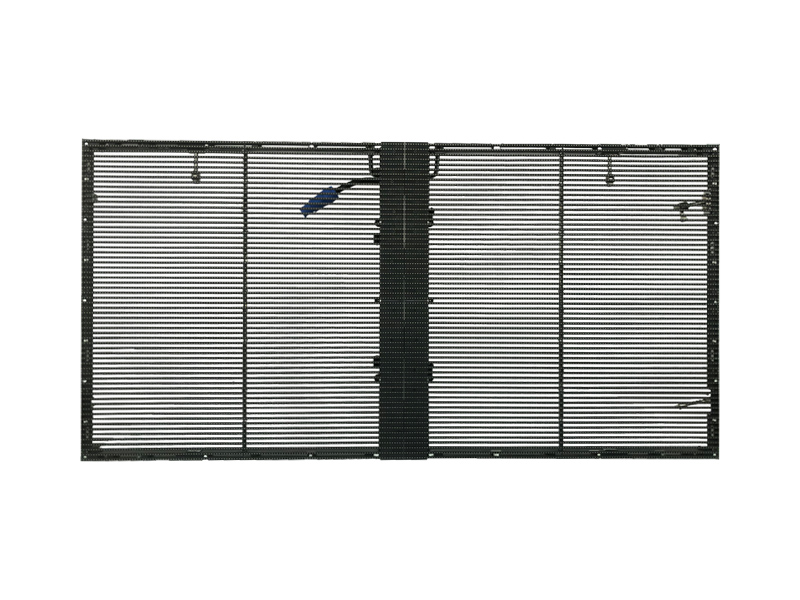

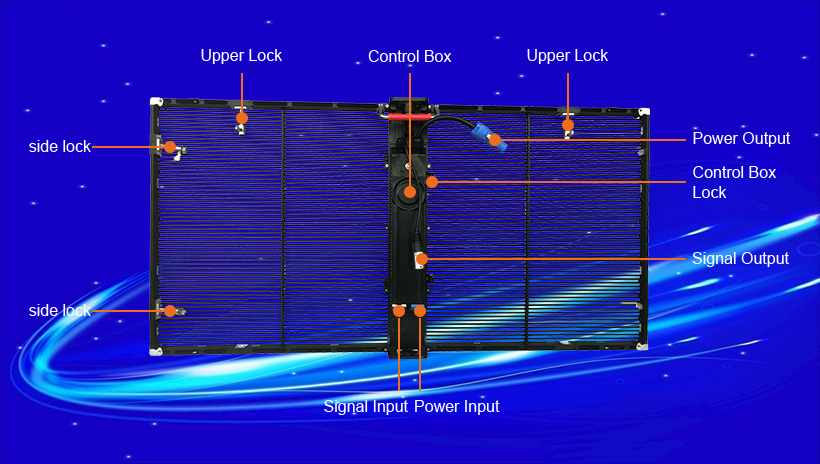

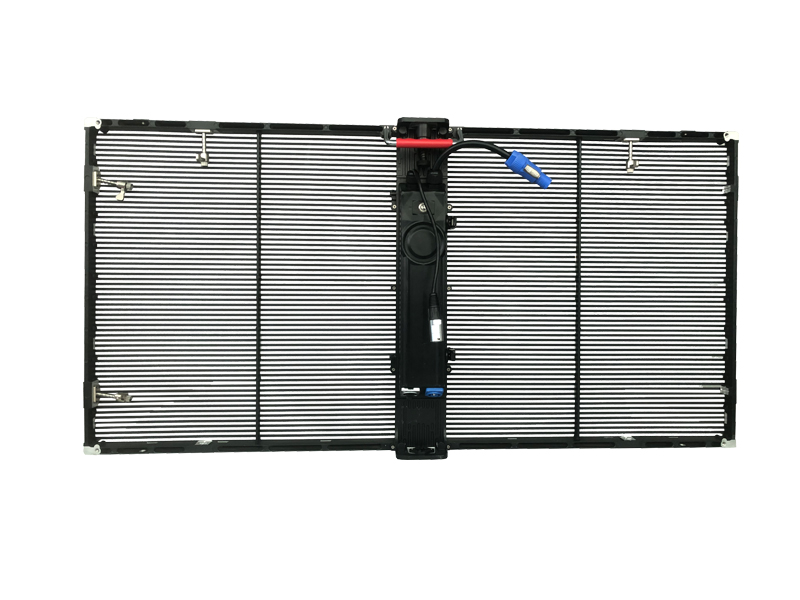

Cabinet Structure
Transparent LED curtain screen cabinet has quick locks.
Ultra-thin and light weight cabinet, separated control box design, easy installation and maintenance.

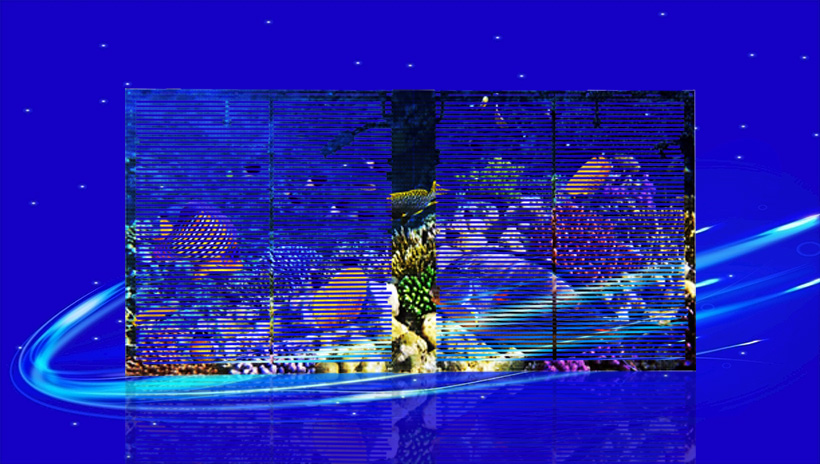

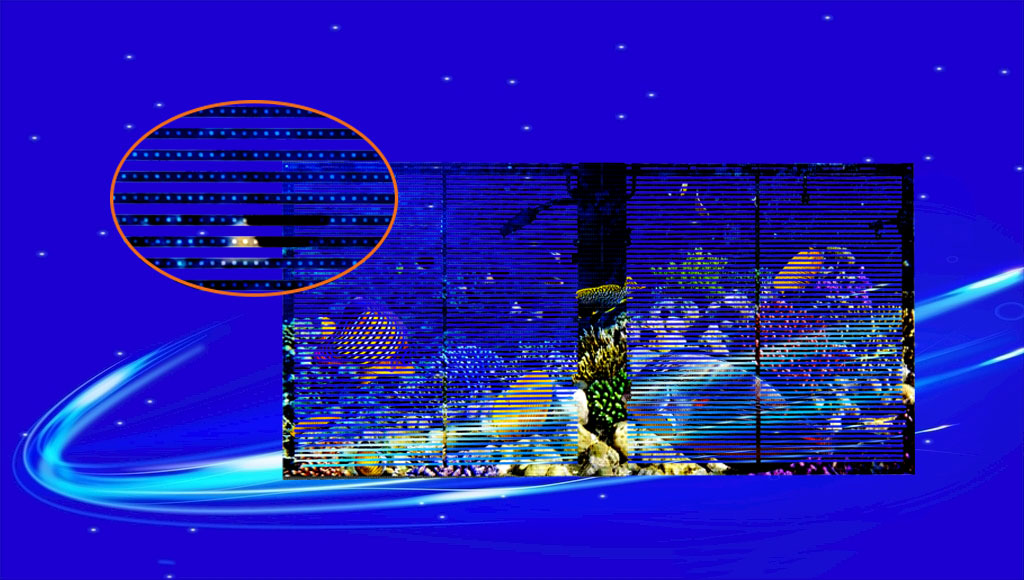

High Transparency Rate
Transparent LED Curtain Screen Installation Method

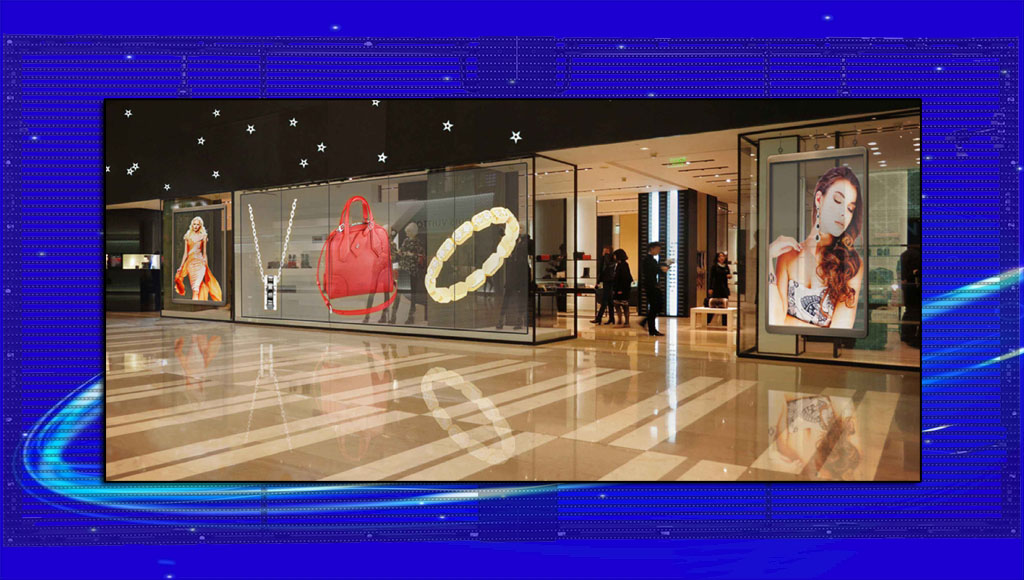

Application: showing room, shopping mall, luxury stores

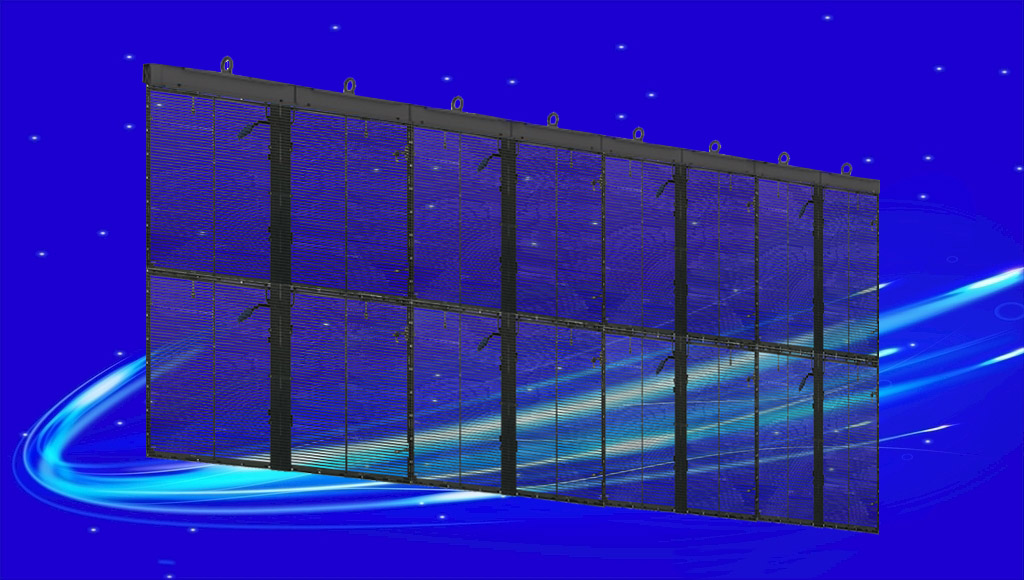

Hanging Installation
Wall Mounted
GOB Transparent LED Curtain Screen Optional
Specification Sheet
| Item | P2.9-6.25 | P3.9-7.8 | P7.8-7.8 | P10.4-10.4 |
| Pixel Pitch | 2.9-6.25mm | 3.91-7.8mm | 7.8-7.8mm | 10.4-10.4mm |
| LED Encapsulation | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Density (pixels/m²) | 53760 | 32768 | 16384 | 9216 |
| Brightness (cd/m²) | 800-1100 | 800-1100 | 800-1100 | 800-1100 |
| Color Temperature | 6500-9500k | 6500-9500k | 6500-9500k | 6500-9500k |
| Cabinet Size | 1000mm×500mm | 1000mm×500mm | 1000mm×500mm | 1000mm×500mm |
| Cabinet Resolution (pixels) | 336×80 | 256×64 | 128×64 | 256×64 |
| Cabinet Material | Die casting Aluminum | |||
| Working Voltage | AC：110V~240V, 50~60Hz | |||
| MAX Power Consumption | ≤700W/ m² | |||
| AVG Power Consumption | 200W/ m²～300W/ m² | |||
| Viewing Angle | H: 140° V: 140° | |||
| Refresh Rate | 3840Hz | |||
| Gray Scale | 14-16bit | |||
| Highest Contrast Ratio | 6000:1 | |||
| Control Method | Synchronous Control System | |||
| IP Grade | IP30 | |||
| Working Temperature | 0℃～+60℃ | |||
| Working Humidity (RH) | 10% ～ 90% RH | |||
| LED Life Span | 100000H | |||
| Certificate | FCC, CE, RoHs, CCC | |||
